Skid Plate-Transfer Case: Removal

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

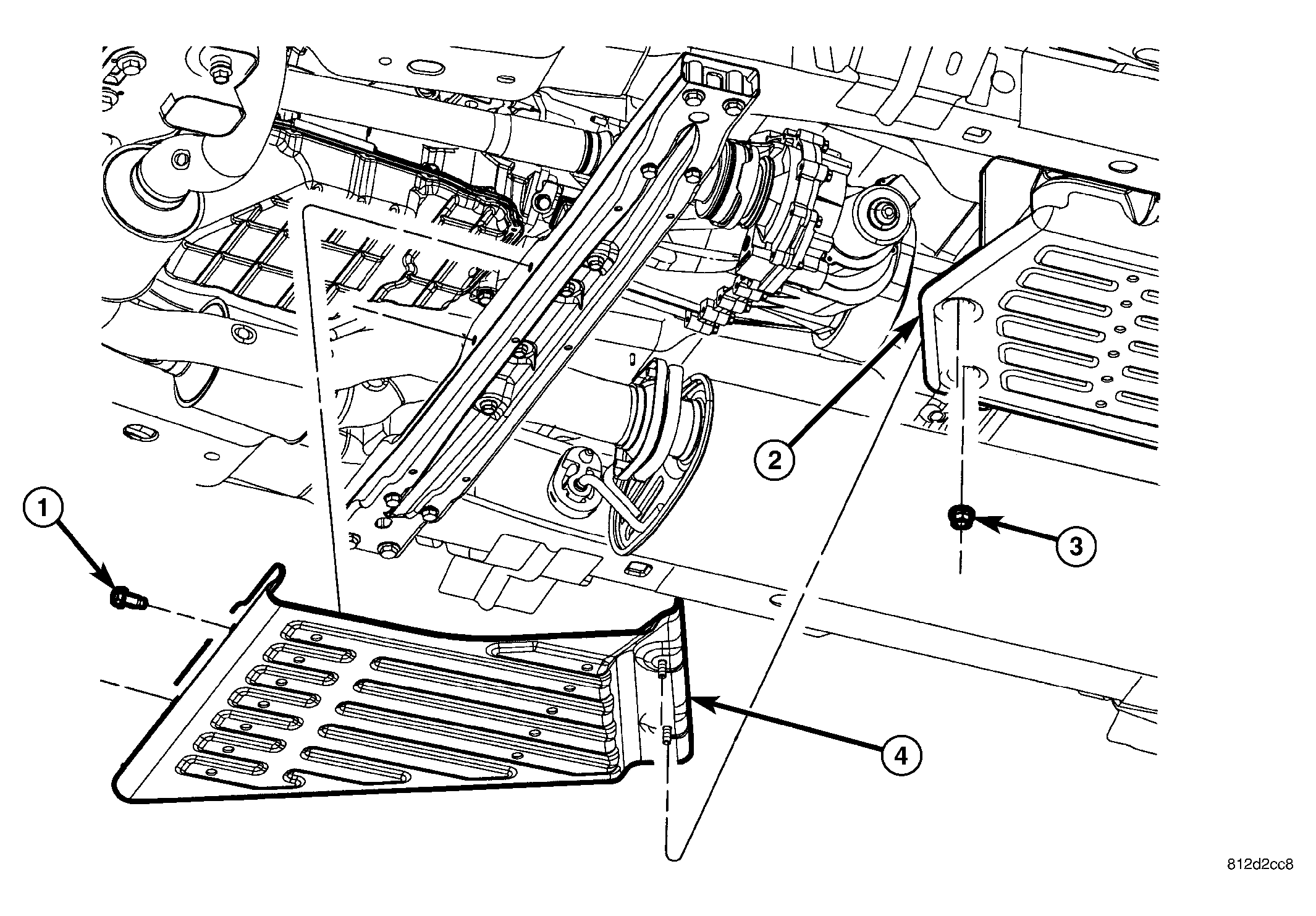

Fig 1: Transfer Case Skid Plate
GC0027823Courtesy of DAIMLERCHRYSLER CORP.
  1. Raise and support the vehicle.
  2. Remove the crossmember bolts (1).
  3. Remove the nuts (3) and remove the skid plate.
