Vehicle Preparation
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
Position the vehicle on a frame alignment rack, refer to instructions provided with equipment being used. Adjust the vehicle PLP heights to the specified dimension above the work surface (datum line). Vertical dimensions can be taken from the datum line to the locations indicated were applicable.
| DESCRIPTION | FIGURE |

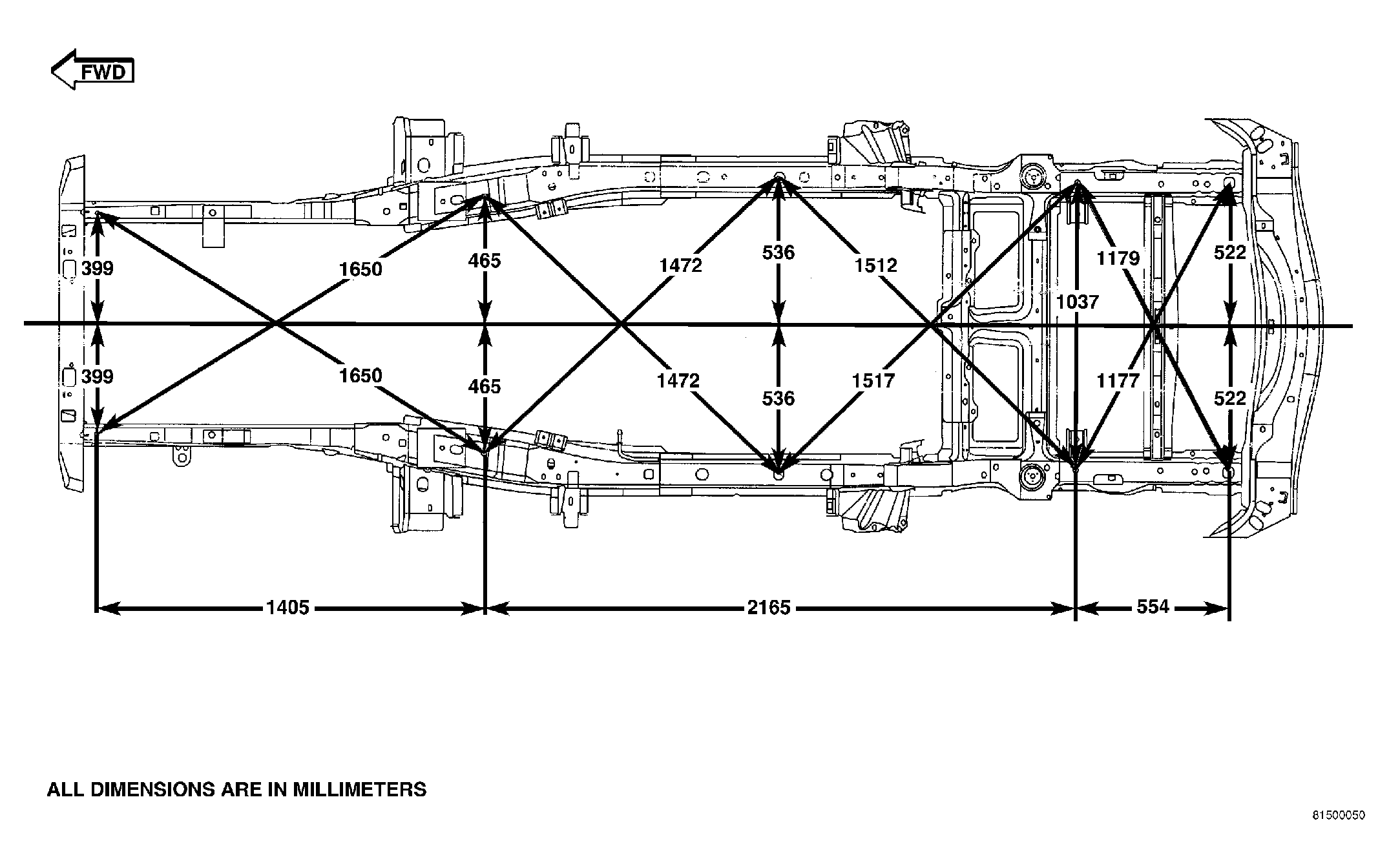

| FRAME DIMENSIONS - TOP VIEW | Fig 1. |

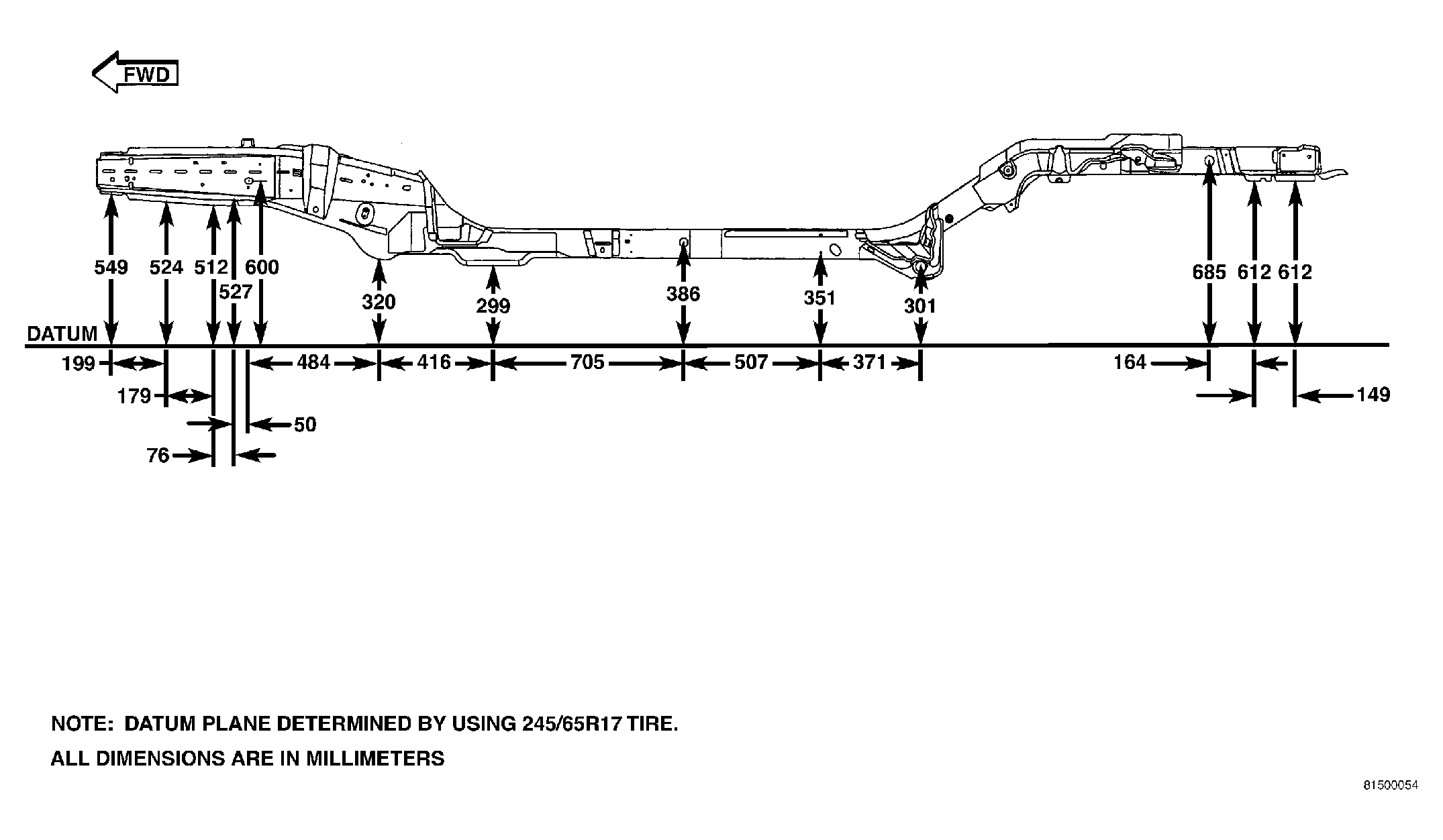

| FRAME DIMENSIONS - SIDE VIEW | Fig 2. |
