Section 590 (Frame & Bumpers): CROSSMEMBER-Rear/Transmission: Installation
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

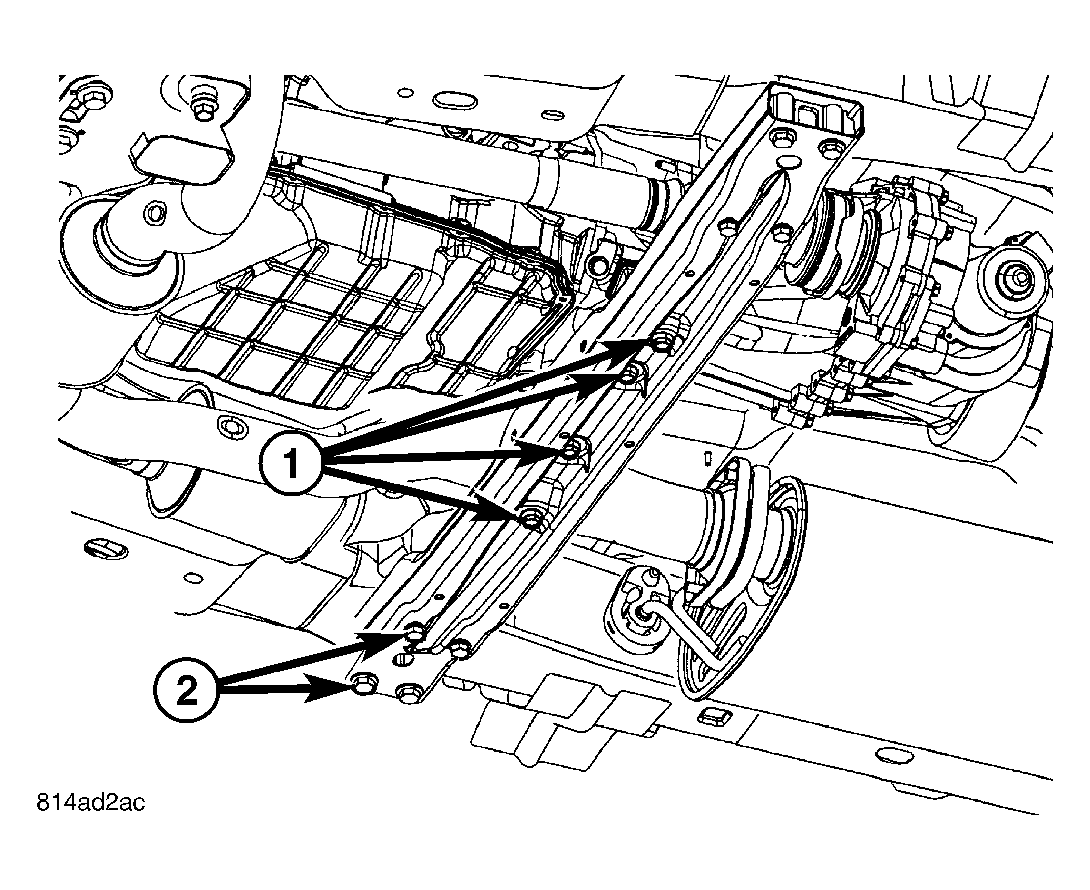

- Install the crossmember and install the eight crossmember bolts (2).
- Tighten the crossmember bolts to 54 N.m (40 ft. lbs.).
- Remove the lifting device.
- Install the four transmission mount bolts (1) and tighten to 54 N.m (40 ft. lbs.).
- Install the skid plate. (Refer to FRAME & BUMPERS/FRAME/SKID PLATE-TRANSFER CASE - INSTALLATION)
