CROSSMEMBER-Engine Cradle: Removal: Notes

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

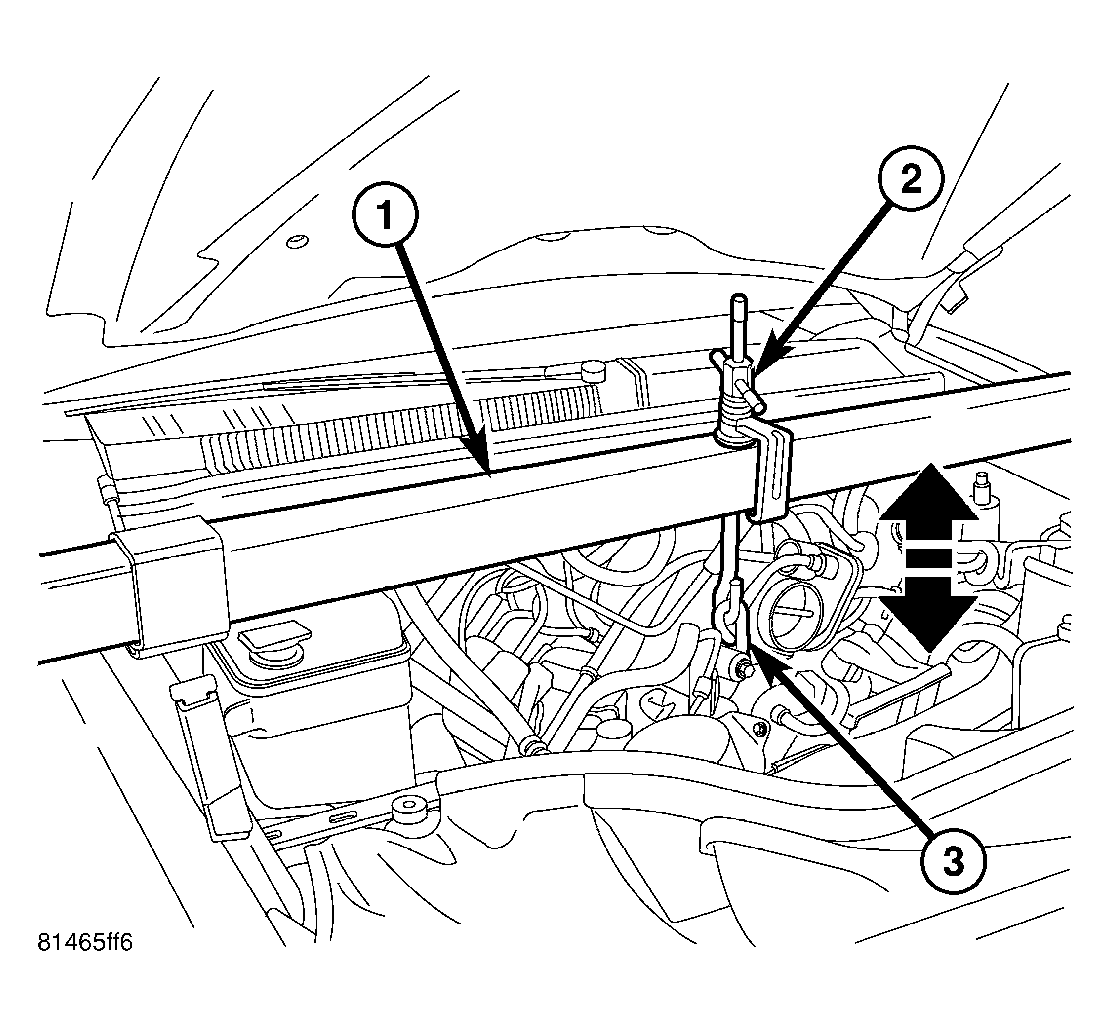

Fig 1: Engine Support Tool
GC0027802Courtesy of DAIMLERCHRYSLER CORP.
  1. Support engine using engine support tool #8534 or equivalent.
  2. Remove the front skid plates. (Refer to FRAME & BUMPERS/FRAME/SKID PLATE-FRONT - REMOVAL)
  3. Remove the rotors. (Refer to BRAKES/HYDRAULIC/MECHANICAL/REMOVAL - FRONT DISC BRAKE ROTOR)
    Fig 2: Tie Rod Components
    GC0010483Courtesy of DAIMLERCHRYSLER CORP.
    1 - NUT
    2 - OUTER TIE ROD END
    3 - JAM NUT
    4 - INNER TIE ROD END
    5 - KNUCKLE
    NOTE: Do not twist the boot anytime during removal or installation.
  4. Remove the outer tie rod end (2) nut (1) from the ball stud.
    Fig 3: Tie Rod End Puller
    GC0026768Courtesy of DAIMLERCHRYSLER CORP.
    1 - INNER TIE ROD END
    2 - JAM NUT
    3 - OUTER TIE ROD END
    4 - KNUCKLE
    5 - 8677
  5. Separate the outer tie rod end (3) from the knuckle with Remover 8677 (5).

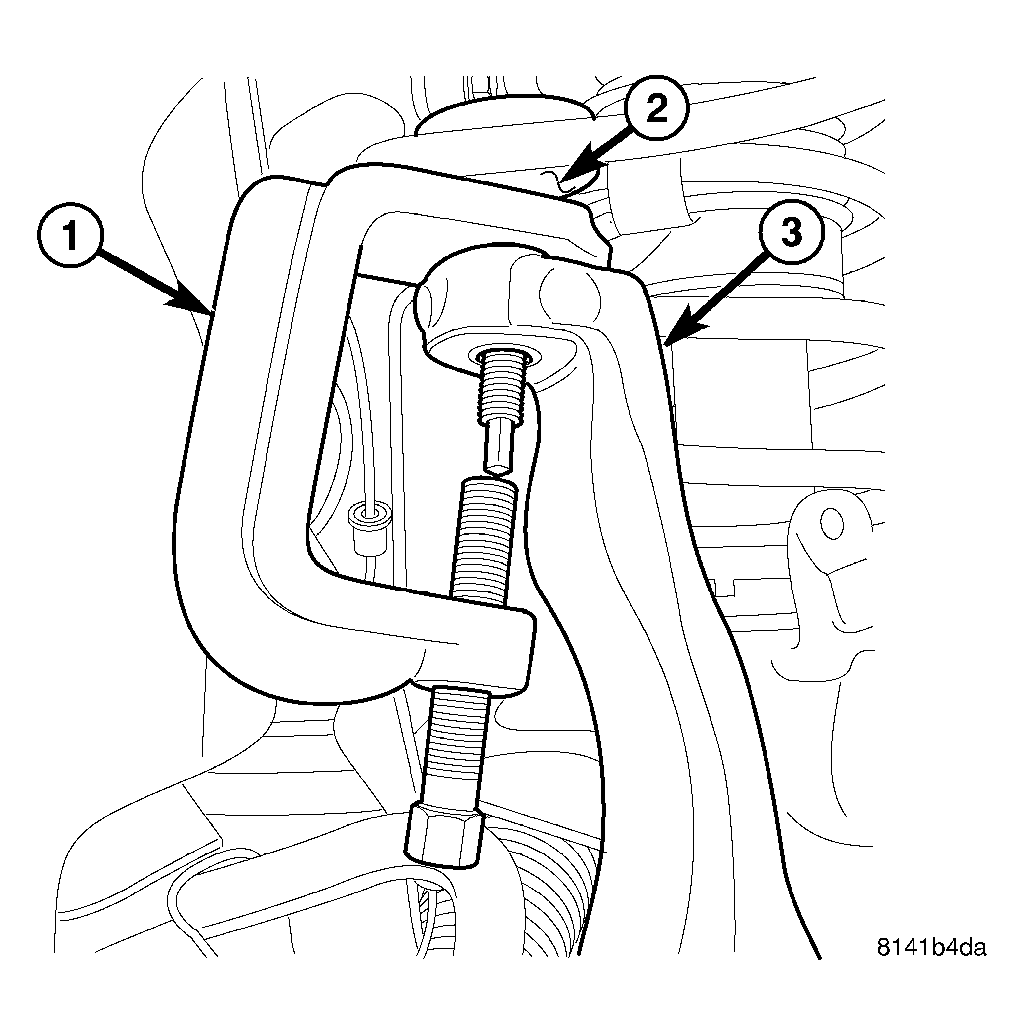

    Fig 4: Upper Ball Joint Separation
    GC0026769Courtesy of DAIMLERCHRYSLER CORP.
    1 - SPECIAL TOOL 8677
    2 - UPPER BALL JOINT
    3 - KNUCKLE
  6. Remove the upper ball joint nut.
  7. Separate the upper ball joint (2) from the knuckle (3) using tool 8677 (1).
    Fig 5: Knuckle
    GC0027803Courtesy of DAIMLERCHRYSLER CORP.
  8. Remove the axle nuts and reinstall a couple threads.

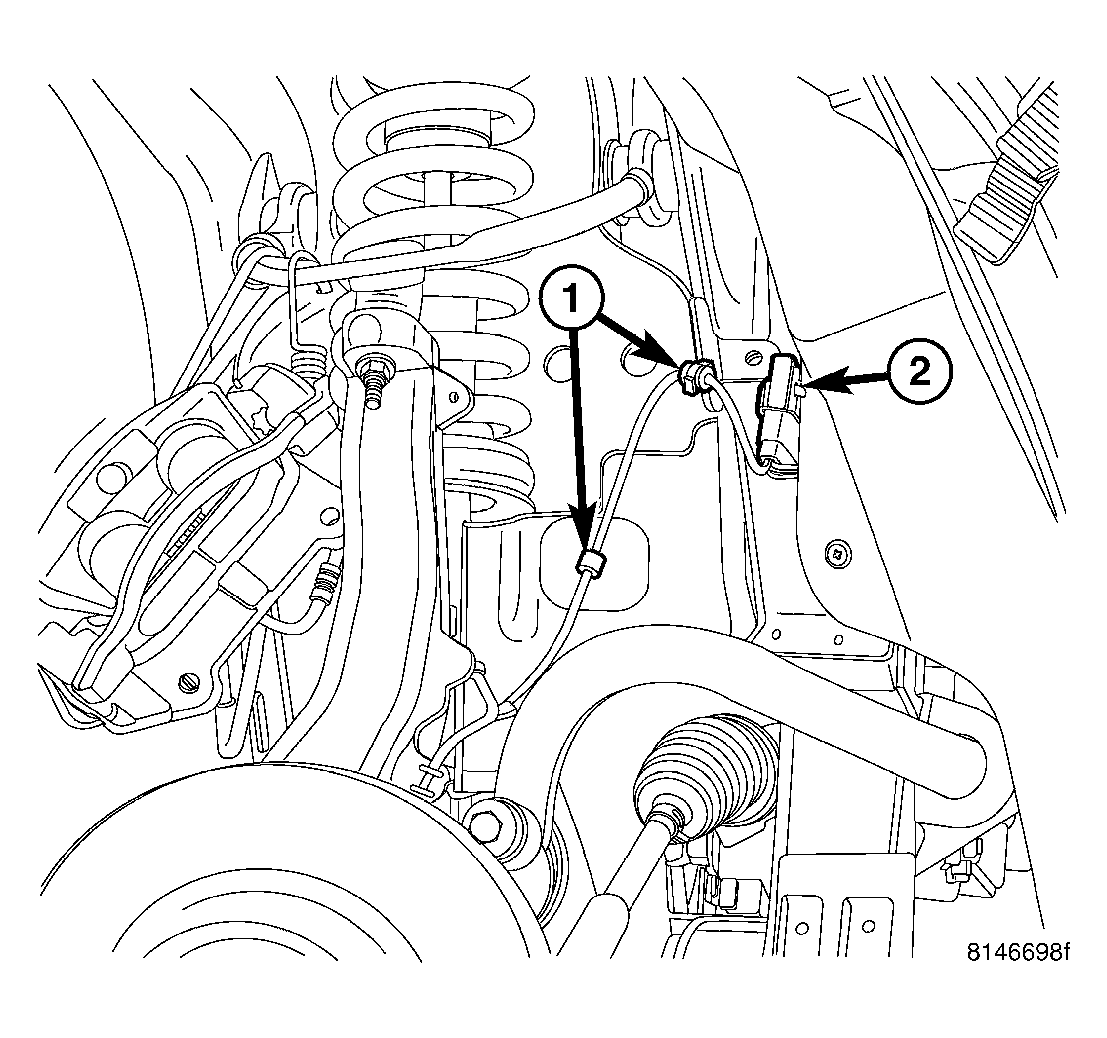

    Fig 6: Speed Sensor
    GC0027813Courtesy of DAIMLERCHRYSLER CORP.
  9. Disconnect the speed sensors (2) and separate the harness from the support clips (1).

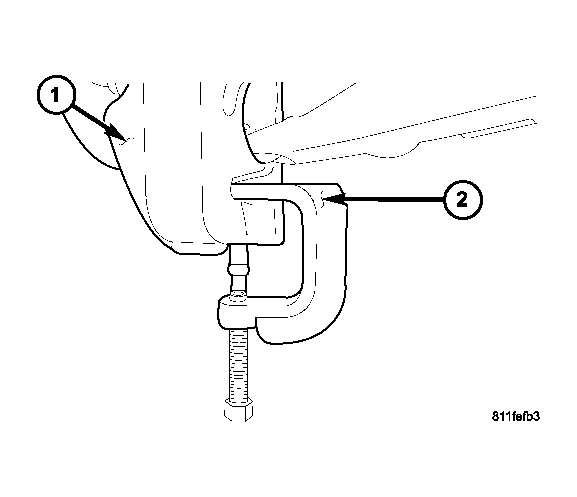

    Fig 7: Ball Joint Tool
    GC0011124Courtesy of DAIMLERCHRYSLER CORP.
    1 - KNUCKLE
    2 - C-4150A
  10. Remove the lower ball joint nut.
  11. Separate the lower ball joint from the knuckle (1) using tool C-4150A (2).

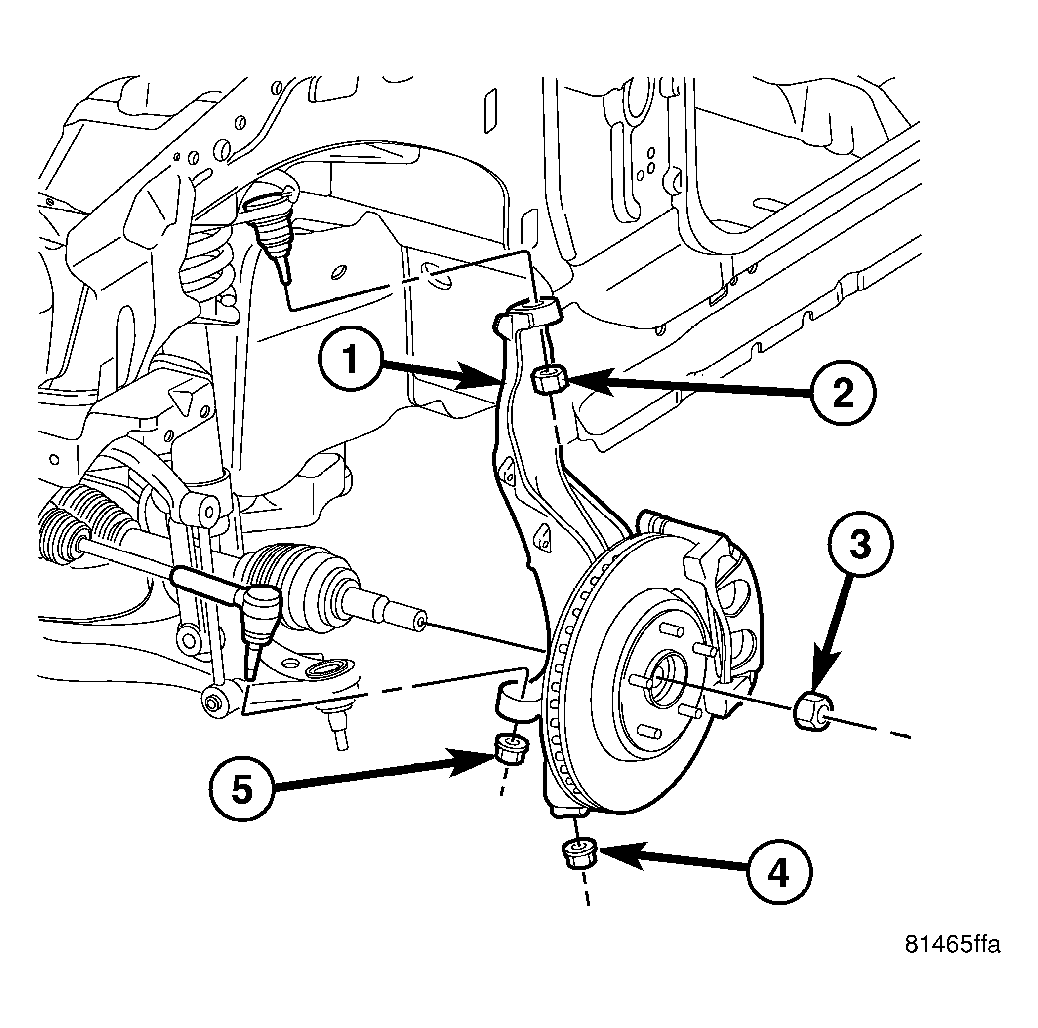

    Fig 8: Knuckle
    GC0027803Courtesy of DAIMLERCHRYSLER CORP.
  12. Remove the axle nuts (3) and remove the knuckles (1) from the vehicle.

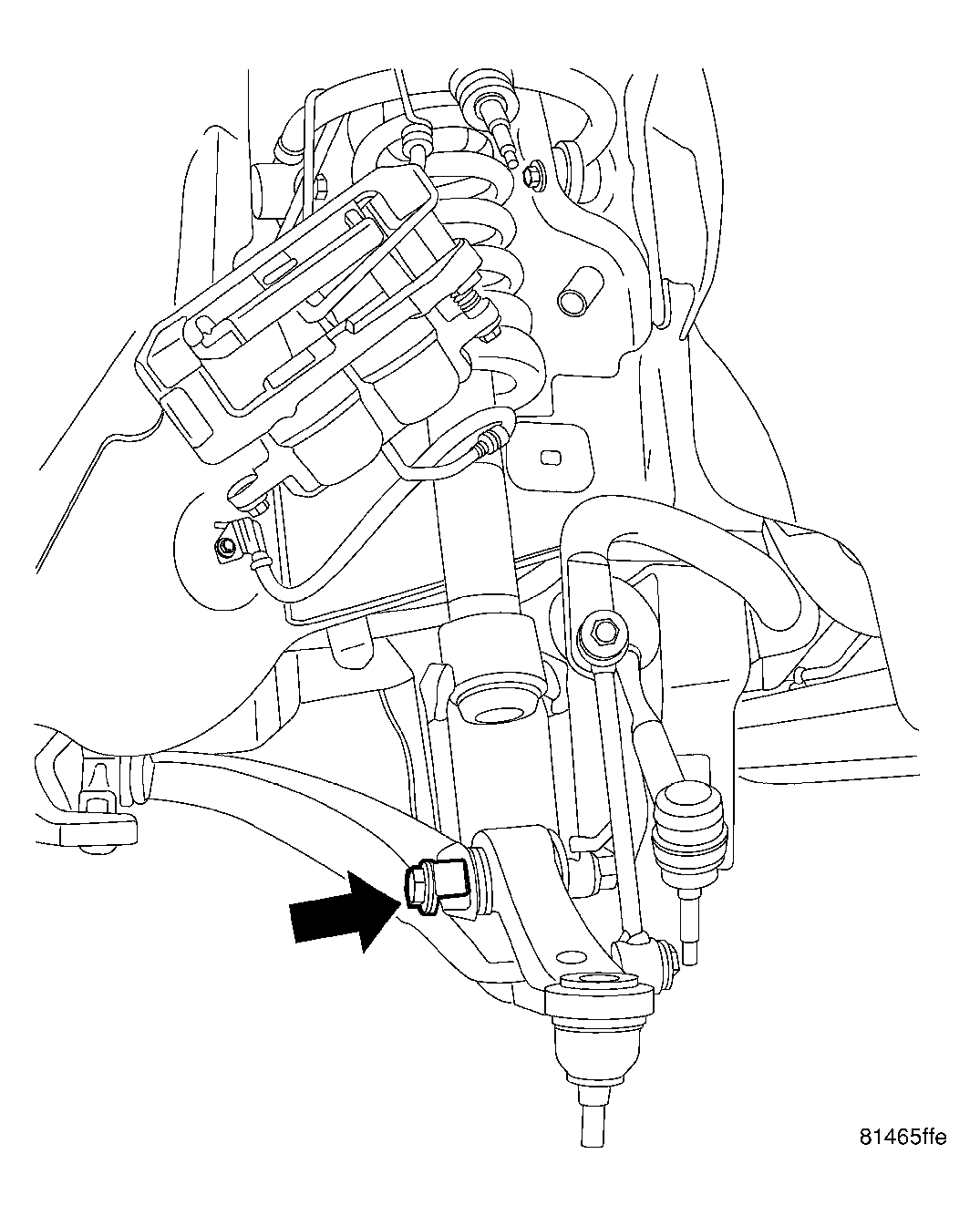

    Fig 9: Clevis Bolt
    GC0027804Courtesy of DAIMLERCHRYSLER CORP.
  13. Remove the lower clevis bolts.
