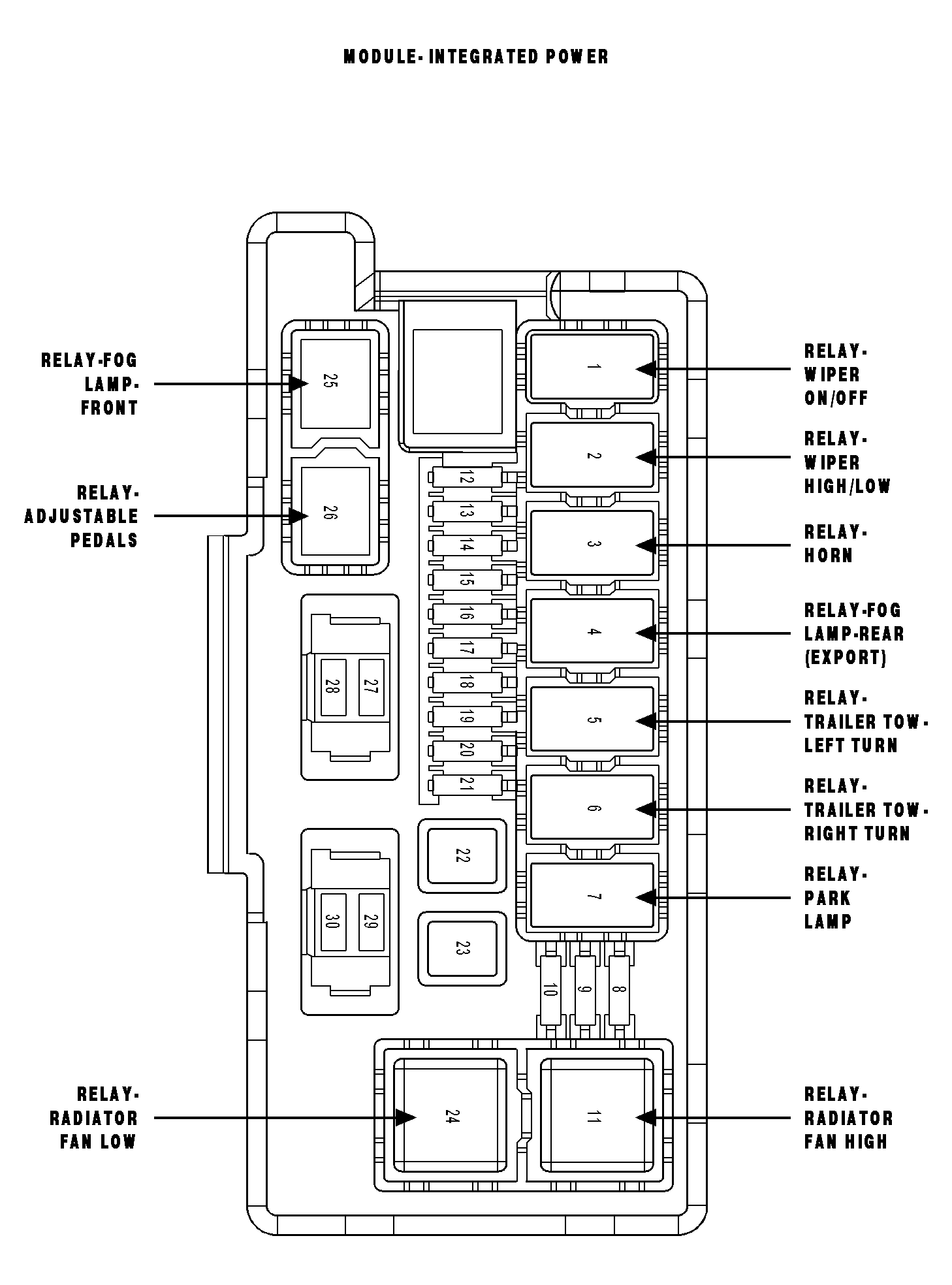

Wiper On/Off Relay Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
RELAY-WIPER ON/OFF
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 30 |
W6 16BR/LB |
WIPER ON/OFF RELAY OUTPUT |
| 85 |
W5 20BR/LG |
WIPER ON/OFF RELAY CONTROL |
| 86 |
A5 16RD/VT |
FUSED B(+) |
| 87 |
A5 16RD/VT |
FUSED B(+) |
| 87A |
Z387 16BK |
GROUND |
