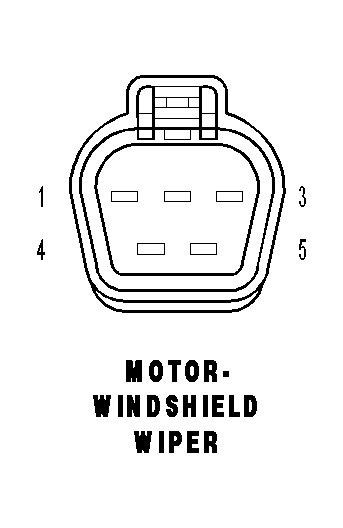

Windshield Wiper Motor Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
MOTOR-WINDSHIELD WIPER - 5 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | W7 20BR/GY (LHD) | FRONT WIPER PARK SWITCH SENSE |
| 1 | W3 16BR/WT (RHD) | FRONT WIPER HIGH/LOW RELAY LOW SPEED OUTPUT |
| 2 | - | - |
| 3 | W4 16BR/OR | FRONT WIPER HIGH/LOW RELAY HIGH SPEED OUTPUT |
| 3 | W7 20BR/GY (RHD) | FRONT WIPER PARK SWITCH SENSE |
| 4 | Z103 16BK/WT (LHD) | GROUND |
| 4 | W4 16BR/OR (RHD) | FRONT WIPER HIGH/LOW RELAY HIGH SPEED OUTPUT |
| 5 | W3 16 BR/WT (LHD) | FRONT WIPER HIGH/LOW RELAY LOW SPEED OUTPUT |
| 5 | Z103 16BK/WT (RHD) | GROUND |
