WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

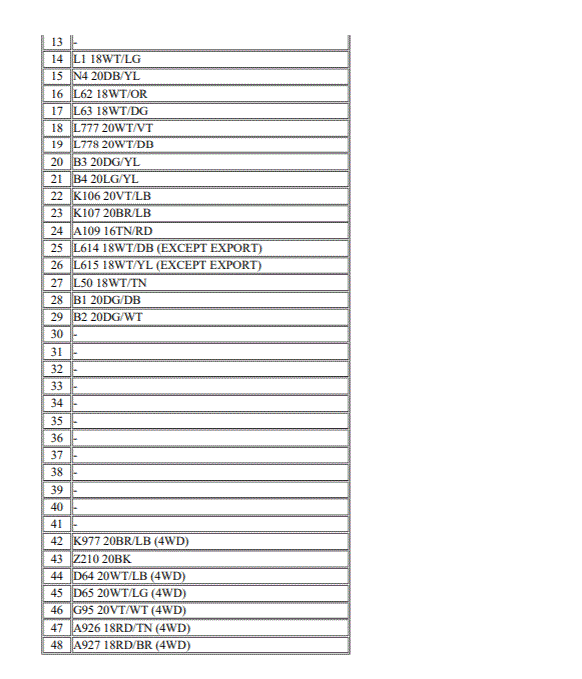

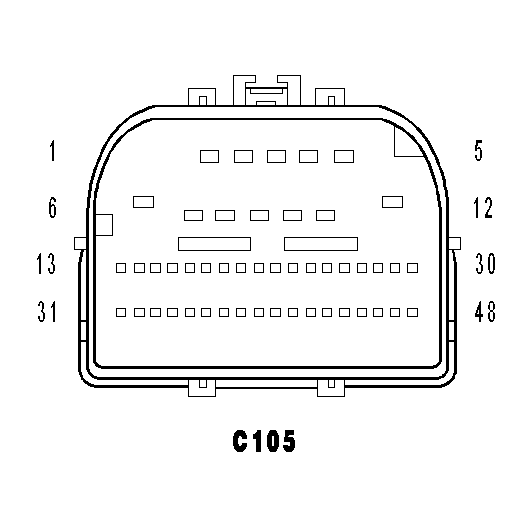

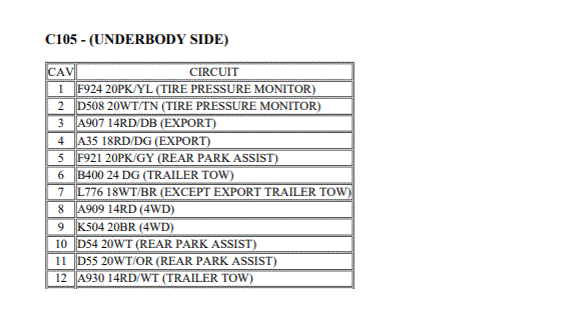

C105 - (UNDERBODY SIDE)
Courtesy of DAIMLERCHRYSLER CORP.DAIMLERCHRYSLER CORP.DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.DAIMLERCHRYSLER CORP.DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.DAIMLERCHRYSLER CORP.DAIMLERCHRYSLER CORP.
