Transmission Side Inline (Diesel/3.7L A/T) Connector End View (C114)
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

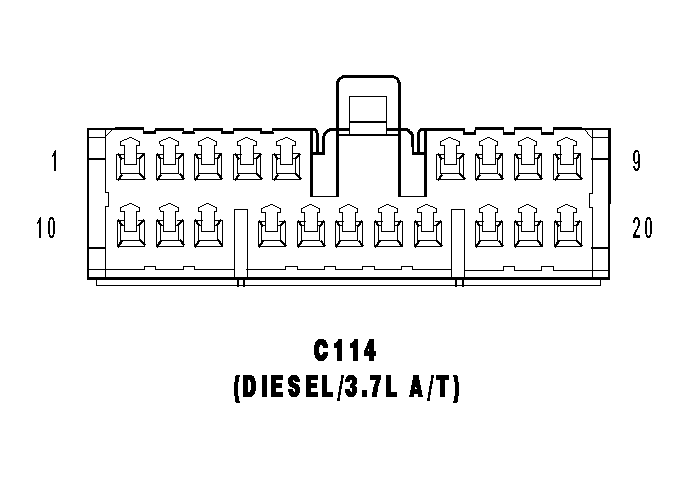

C114 (DIESEL/3.7L A/T) - (TRANSMISSION SIDE)
| CAV | CIRCUIT |
| 1 | D223 20WT/VT |
| 2 | T76 20YL/TN |
| 3 | T71 20YL/OR |
| 4 | T74 18YL/LG |
| 5 | T75 18YL/LB |
| 6 | T60 18DG/BK |
| 7 | T73 18YL/GY |
| 8 | T72 20YL/DB |
| 9 | T77 20YL/BR |
| 10 | - |
| 11 | T78 18YL |
| 12 | D65 20WT/LG |
| 13 | D64 20WT/LB |
| 14 | F946 20PK/LG |
| 15 | T13 20DG/VT |
| 16 | T54 20DG/OR |
| 17 | Z904 18BK |
| 18 | T70 20YL |
| 19 | - |
| 20 | - |
