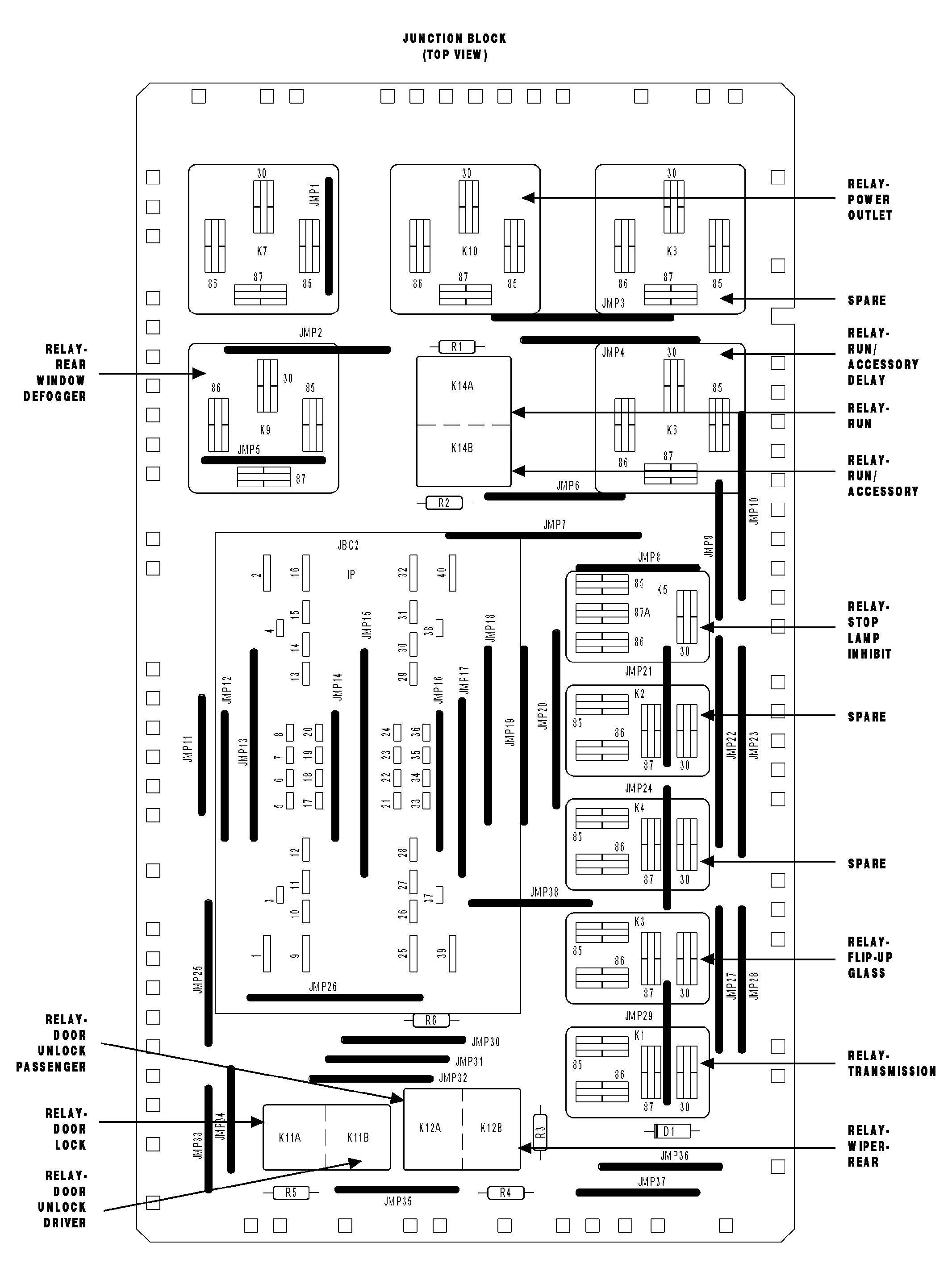

Transmission Relay (NAG1) Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
RELAY-TRANSMISSION (NAG1)
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 30 |
F942 20PK/LG |
FUSED IGNITION SWITCH OUTPUT (RUN-START) |
| 85 |
Z387 16BK |
GROUND |
| 86 |
F945 20PK/LG |
FUSED IGNITION SWITCH OUTPUT (RUN-START) |
| 87 |
F946 20PK/LG |
TRANSMISSION RELAY OUTPUT |
| 87A |
- |
- |
