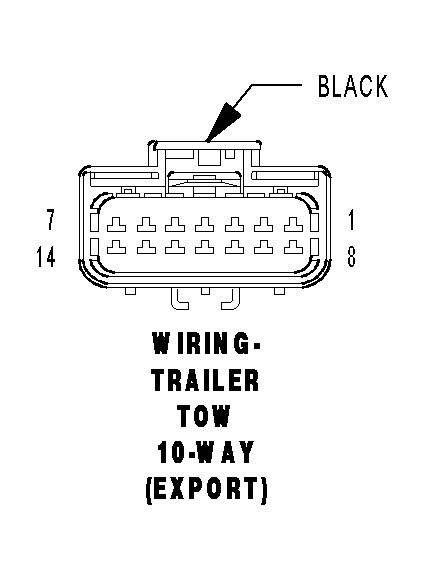

Trailer Tow Electrical (Export) Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
WIRING-TRAILER TOW 10-WAY (EXPORT) - BLACK 14 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | L62 18WT/OR | RIGHT REAR TURN SIGNAL CONTROL |
| 2 | A35 18RD/DG | FUSED B(+) |
| 3 | Z923 14BK | GROUND |
| 4 | L63 18WT/DG | LEFT REAR TURN SIGNAL CONTROL |
| 5 | L777 20WT/BR | FUSED PARK LAMP RELAY OUTPUT |
| 6 | L50 18WT/TN | BRAKE LAMP SWITCH OUTPUT |
| 7 | L777 20WT/BR | FUSED PARK LAMP RELAY OUTPUT |
| 8 | L1 18WT/LG | BACK-UP LAMP FEED |
| 9 | A907 14RD/DB | FUSED B(+) |
| 10 | A930 14RD/WT | POWER OUTLET RELAY OUTPUT |
| 11 | Z923 14BK | GROUND |
| 12 | B400 14DG | TRAILER TOW ELECTRIC BRAKE OUTPUT |
| 13 | Z923 14BK | GROUND |
| 14 | - | - |
