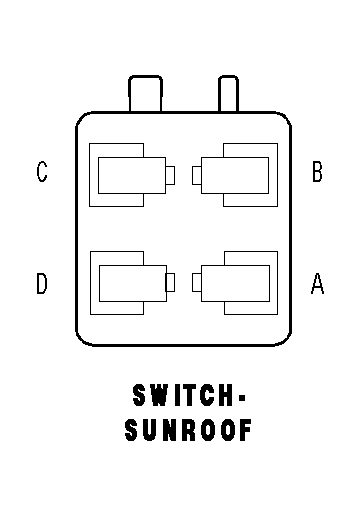

Sunroof Switch Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
SWITCH-SUNROOF - 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| A |
Q4 20OR/YL |
SUNROOF VENT SWITCH SENSE |
| B |
Q6 20OR/LG |
SUNROOF SWITCH SUPPLY |
| C |
Q5 20OR/LB |
SUNROOF CLOSE SWITCH SENSE |
| D |
Q3 20OR/TN |
SUNROOF OPEN SWITCH SENSE |
