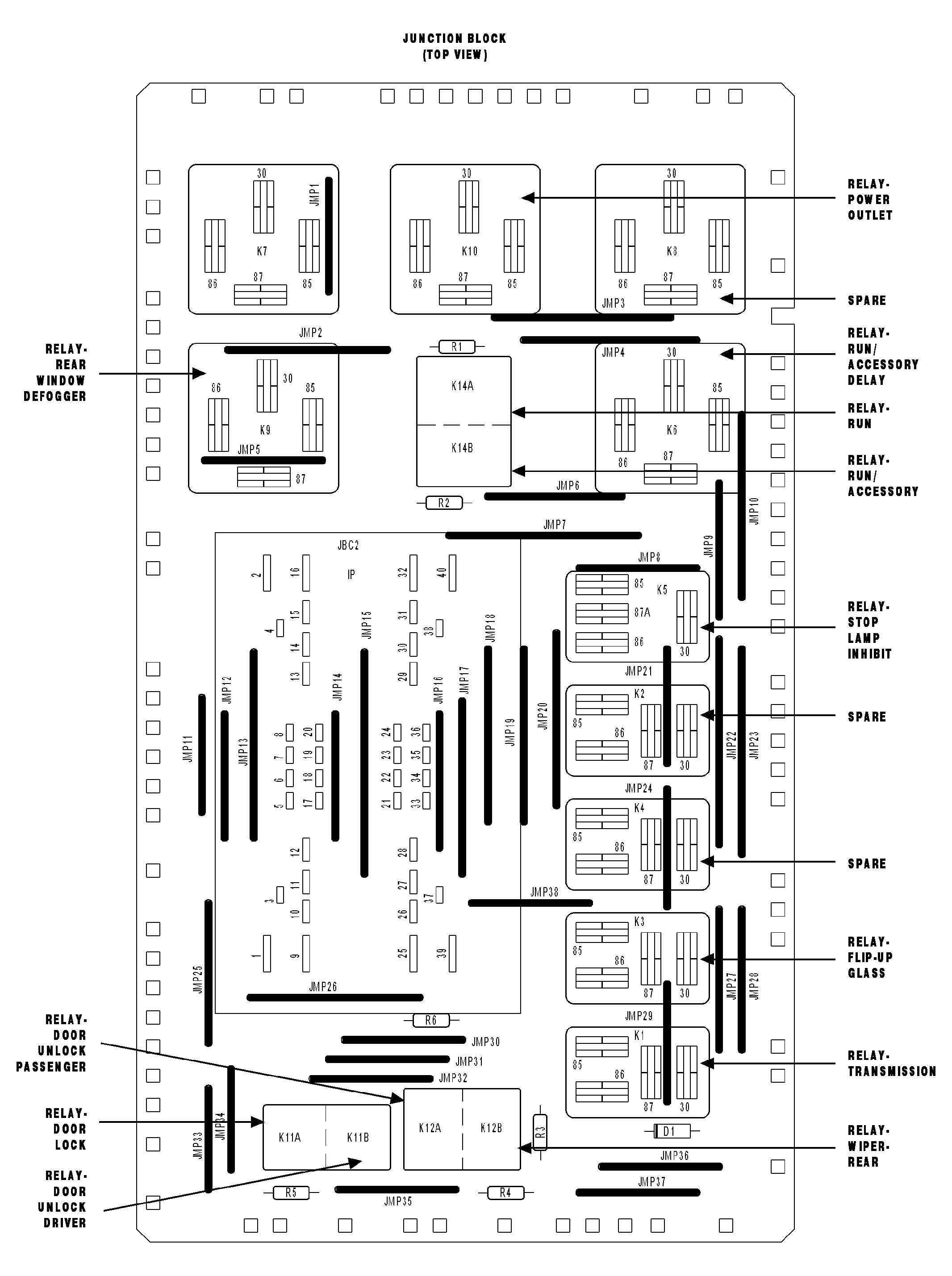

Stop Lamp Inhibit Relay Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
RELAY-STOP LAMP INHIBIT
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 30 |
L950 18WT/LG |
STOP LAMP INHIBIT RELAY FEED |
| 85 |
B45 20DG/LB |
STOP LAMP INHIBIT RELAY CONTROL |
| 86 |
F943 20PK/LG |
FUSED IGNITION SWITCH OUTPUT (RUN-START) |
| 87 |
- |
- |
| 87A |
L50 18WT/TN |
BRAKE LAMP SWITCH OUTPUT |
