Starter Motor Relay Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

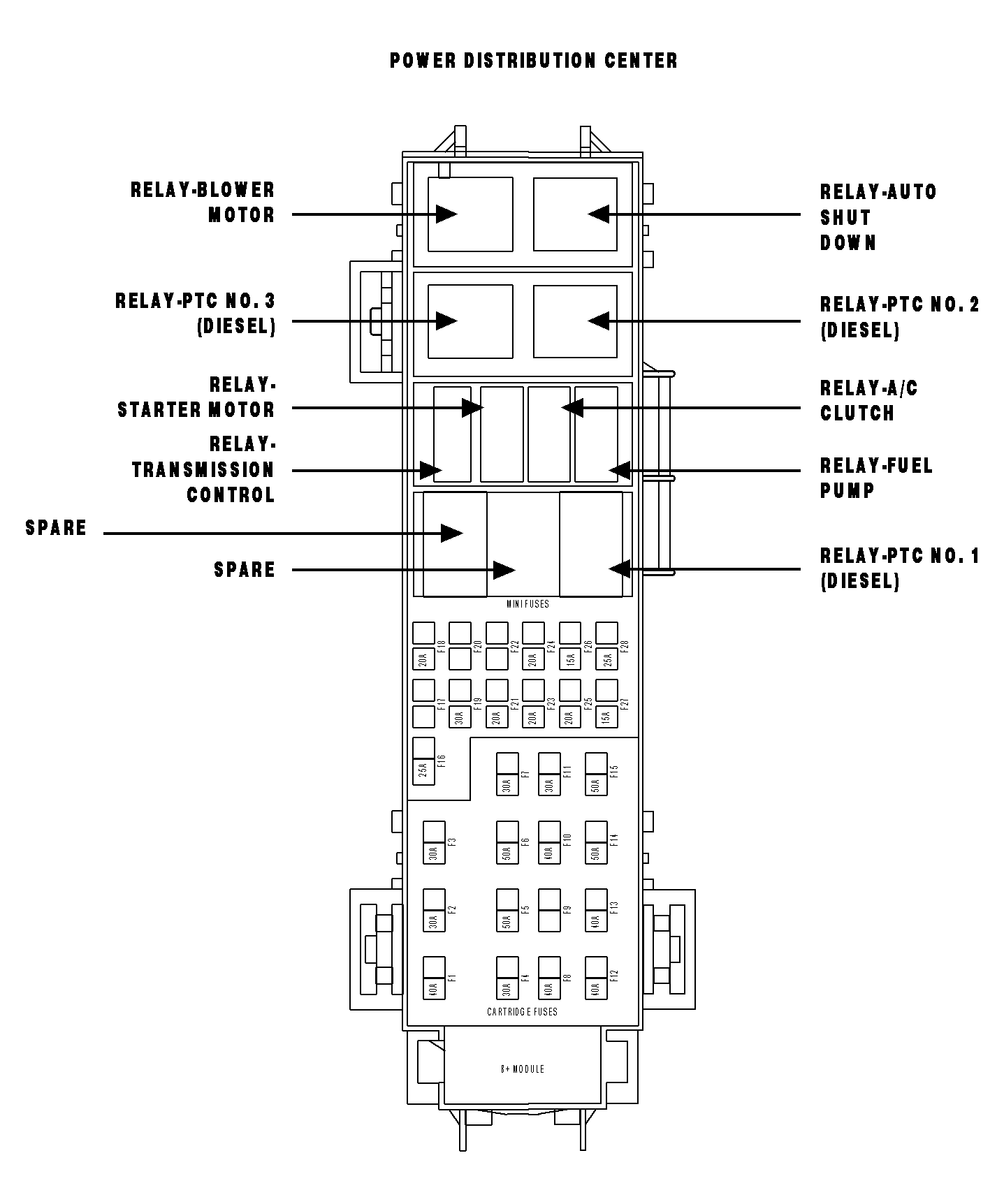

RELAY-STARTER MOTOR
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 30 |
A901 12RD |
FUSED B(+) |
| 85 |
T752 20DG/OR |
ENGINE STARTER MOTOR RELAY CONTROL |
| 86 |
F942 20PK/LG (DIESEL) |
FUSED IGNITION SWITCH OUTPUT (RUN-START) |
| 86 |
F26 18PK/OR (GAS) |
FUSED IGNITION SWITCH OUTPUT (START) |
| 87 |
T750 12YL/GY |
ENGINE STARTER MOTOR RELAY OUTPUT |
| 87A |
- |
- |
