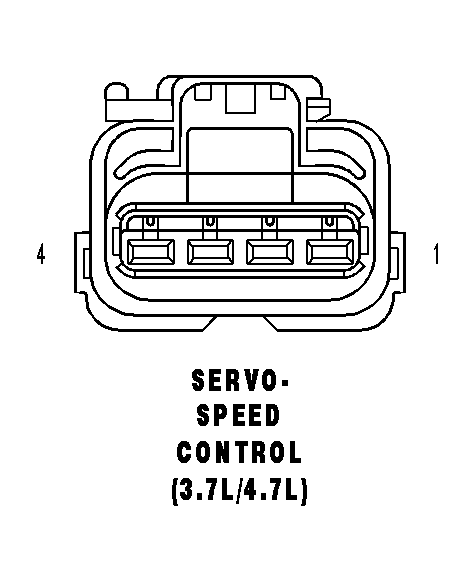

Speed Control Servo (3.7L/4.7L) Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
SERVO-SPEED CONTROL (3.7L/4.7L) - 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
V36 20VT/YL |
S/C VACUUM SOL CONTROL |
| 2 |
V35 20VT/OR |
S/C VENT SOL CONTROL |
| 3 |
V30 20VT/WT |
S/C BRAKE SWITCH OUTPUT |
| 4 |
Z384 20BK |
GROUND |
