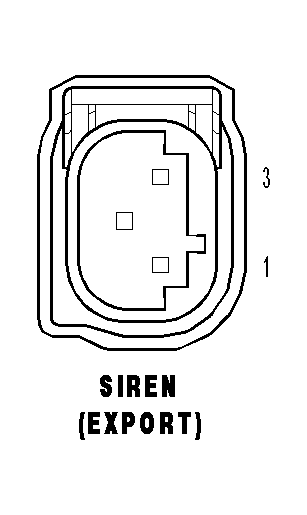

Siren (Export) Connector End View

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

SIREN (EXPORT) - 3 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	A114 18GY/RD	FUSED B(+)
2	Z387 18BK	GROUND
3	D96 20WT/LB	SIREN SIGNAL CONTROL
