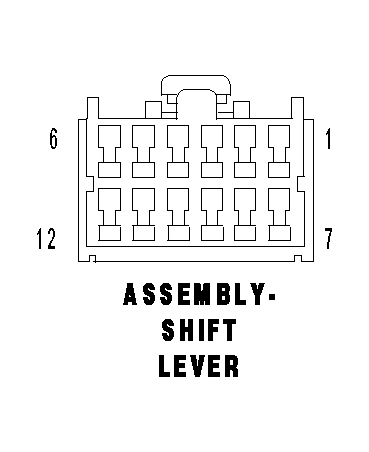

Shift Lever Assembly Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
ASSEMBLY-SHIFT LEVER - 12 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | B15 20DG/WT | BRAKE SWITCH NO. 1 SIGNAL |
| 2 | T5 20DG/YL (4.7L/5.7L) | AUTOSTICK UP/DOWN (ERS) SENSE |
| 3 | E2 20OR/BR | PANEL LAMPS DRIVER |
| 4 | D65 20WT/LG | CAN C BUS (+) |
| 5 | - | - |
| 6 | - | - |
| 7 | Z907 20BK | GROUND |
| 8 | - | - |
| 9 | K900 20DB/DG | SENSOR GROUND |
| 10 | - | - |
| 11 | D64 20WT/LB | CAN C BUS (-) |
| 12 | F1 20PK/WT | FUSED IGNITION SWITCH OUTPUT (RUN-START) |
