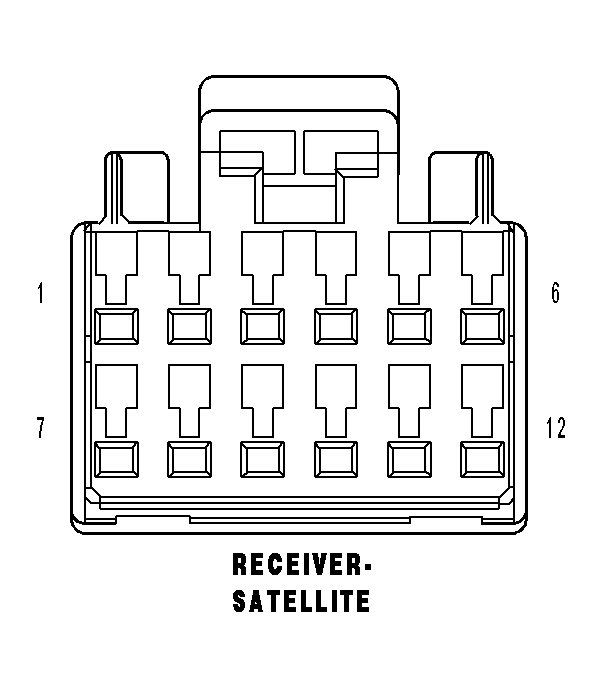

Satellite Receiver Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
RECEIVER-SATELLITE - 12 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
A114 20OR/RD |
FUSED B(+) |
| 2 |
- |
- |
| 3 |
Z514 20BK/LG |
GROUND |
| 4 |
- |
- |
| 5 |
- |
- |
| 6 |
X17 20DG/LB |
AUDIO SIGNAL LEFT (+) |
| 7 |
D54 20WT |
CAN B BUS (-) |
| 8 |
D55 20WT/OR |
CAN B BUS (+) |
| 9 |
- |
- |
| 10 |
- |
- |
| 11 |
X917 20DG |
AUDIO SIGNAL COMMON |
| 12 |
X16 20DG/YL |
AUDIO SIGNAL RIGHT (+) |
