Run Delay Relay/Accessory Delay Relay Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

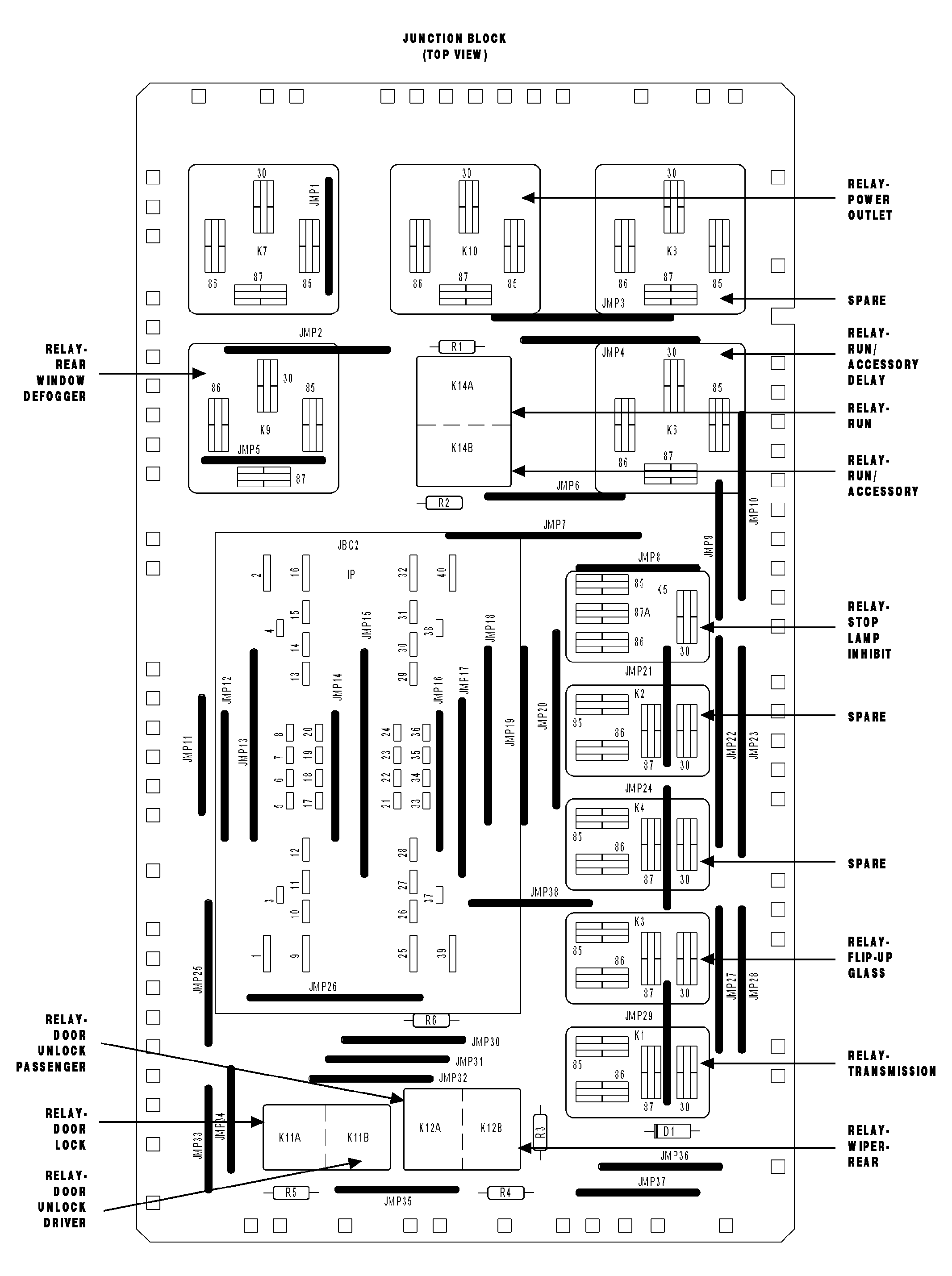

RELAY-RUN/ACCESSORY DELAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 30 |
A906 12RD |
FUSED B(+) |
| 85 |
P305 20LG/LB |
ACCESSORY DELAY RELAY CONTROL |
| 86 |
A906 12RD |
FUSED B(+) |
| 87 |
A139 12RD/YL |
FUSED RUN/ACCESSORY RELAY OUTPUT |
| 87A |
- |
- |
