Right Trailer Tow Turn Relay Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

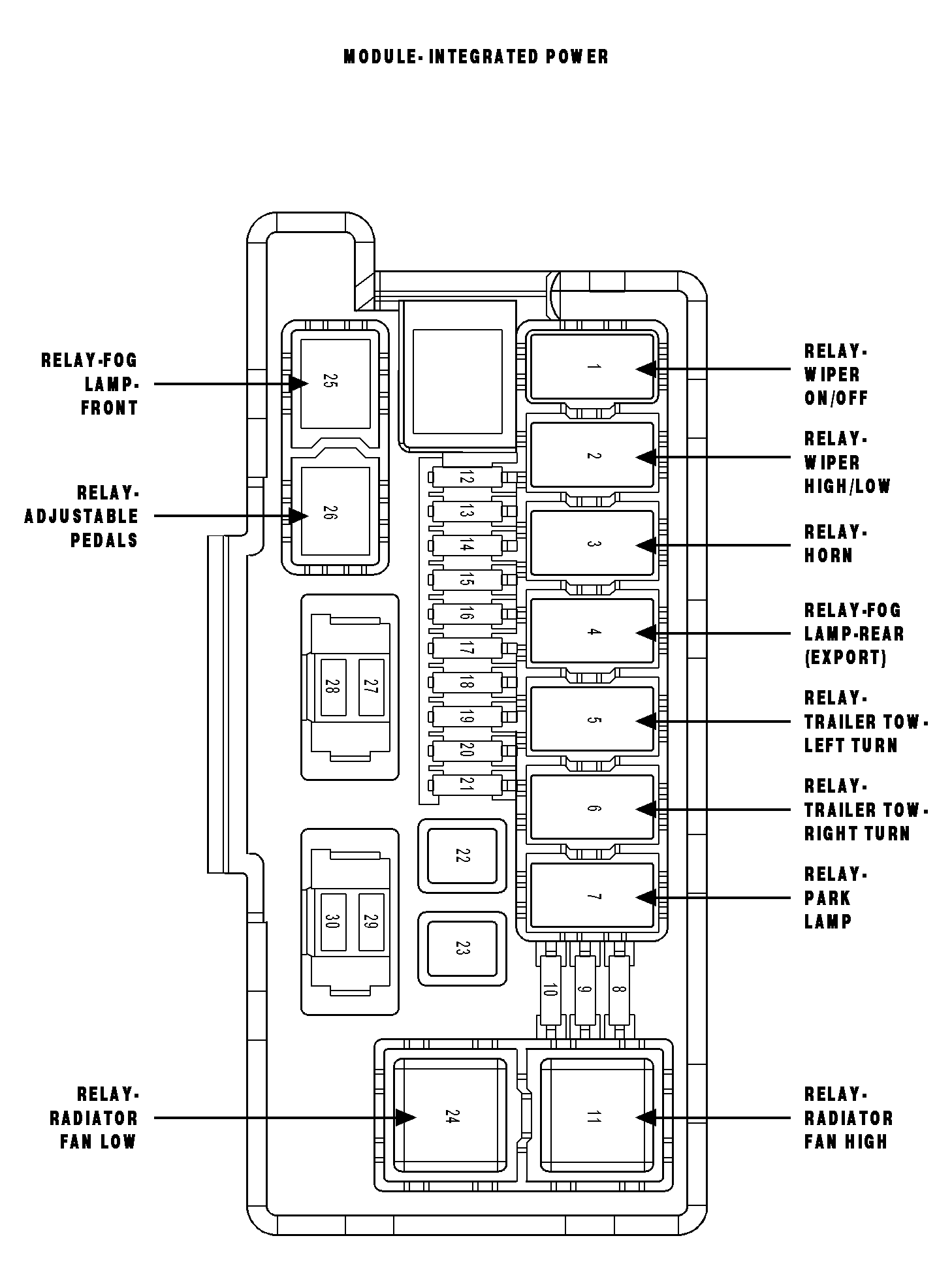

RELAY-TRAILER TOW-RIGHT TURN
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 30 |
A921 18RD |
FUSED B(+) |
| 85 |
L656 20WT/DG |
RIGHT TRAILER TOW BRAKE LAMP RELAY CONTROL |
| 86 |
A921 18RD |
FUSED B(+) |
| 87 |
L614 18WT/DB |
TRAILER TOW TURN SIGNAL |
| 87A |
- |
- |
