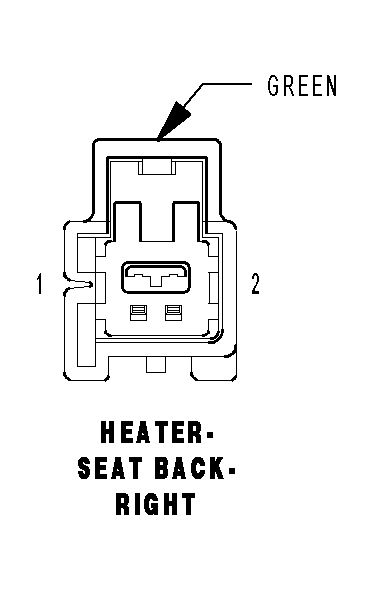

Right Seat Back Heater Connector End View

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

HEATER-SEAT BACK-RIGHT - GREEN 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	P188 16LG/VT	RIGHT SEAT HEATER B(+) DRIVER
2	Z909 16BK	GROUND
