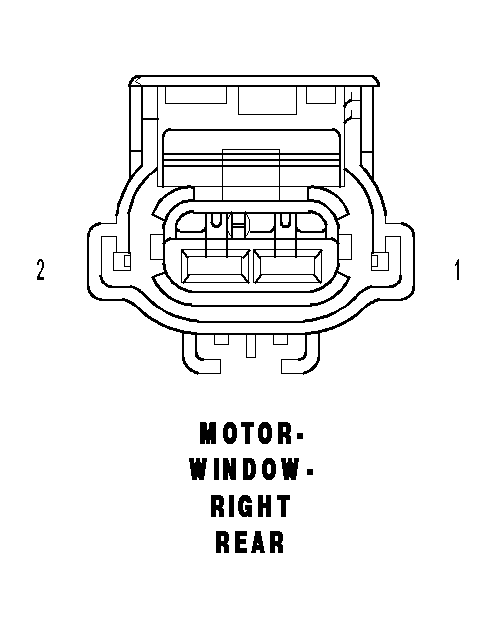

Right Rear Window Motor Connector End View

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

MOTOR-WINDOW-RIGHT REAR - 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	Q112 16OR/BR	RIGHT REAR WINDOW DRIVER (UP)
2	Q212 16OR/VT	RIGHT REAR WINDOW DRIVER (DOWN)
