Right Rear Wheel Speed Sensor Connector End View

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

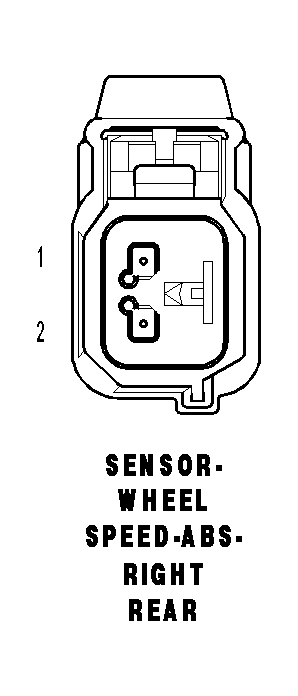

SENSOR-WHEEL SPEED-ABS-RIGHT REAR - 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	B2 20DG/WT	RIGHT REAR WHEEL SPEED SENSOR SUPPLY
2	B1 20DG/DB	RIGHT REAR WHEEL SPEED SENSOR SIGNAL
