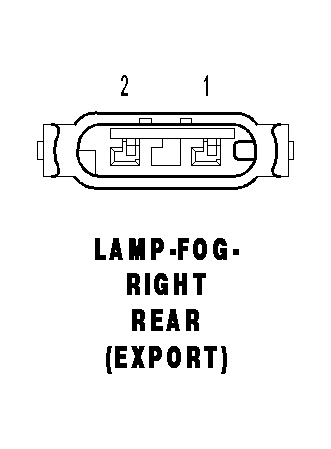

Right Rear Fog Lamp (Export) Connector End View

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

LAMP-FOG-RIGHT REAR (EXPORT) - 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	Z918 18BK	GROUND
2	A35 18RD/DG	FUSED B(+)
