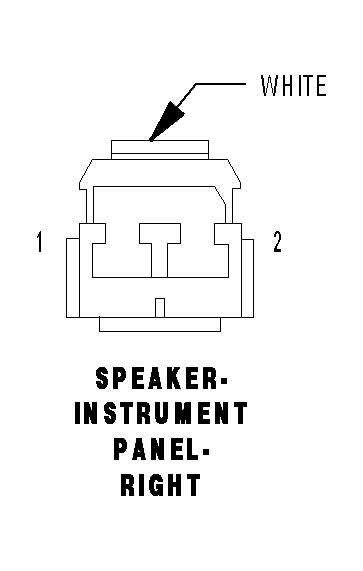

Right Instrument Panel Speaker Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
SPEAKER-INSTRUMENT PANEL-RIGHT - WHITE 2 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | X56 18GY/BR (EXCEPT PREMIUM AUDIO) | LEFT FRONT SPEAKER (-) |
| 1 | X298 18GY/LG (PREMIUM AUDIO) | AMPLIFIED RIGHT I/P SPEAKER (-) |
| 2 | X54 18GY (EXCEPT PREMIUM AUDIO) | RIGHT FRONT SPEAKER (+) |
| 2 | X208 18GY/DG (PREMIUM AUDIO) | AMPLIFIED RIGHT I/P SPEAKER (+) |
