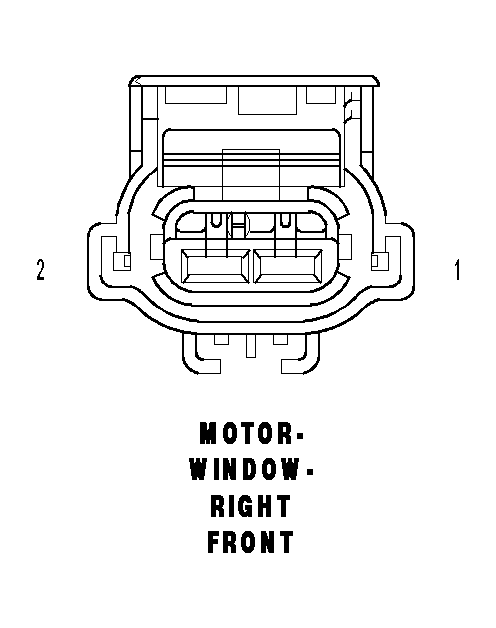

Right Front Window Motor Connector End View

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

MOTOR-WINDOW-RIGHT FRONT - 2 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	Q12 16OR/BR	PASSENGER WINDOW DRIVER UP
2	Q22 16OR/VT	PASSENGER WINDOW DRIVER DOWN
