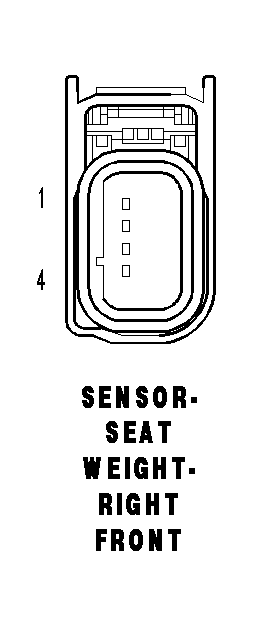

Right Front Seat Weight Sensor Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
SENSOR-SEAT WEIGHT-RIGHT FRONT - 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
R726 20LG/YL |
SEAT WEIGHT SENSOR 5 VOLT |
| 2 |
R728 20LB/YL |
SEAT WEIGHT SENSOR GROUND |
| 3 |
- |
- |
| 4 |
R718 20LB/DG |
SEAT WEIGHT RIGHT FRONT SENSOR SIGNAL |
