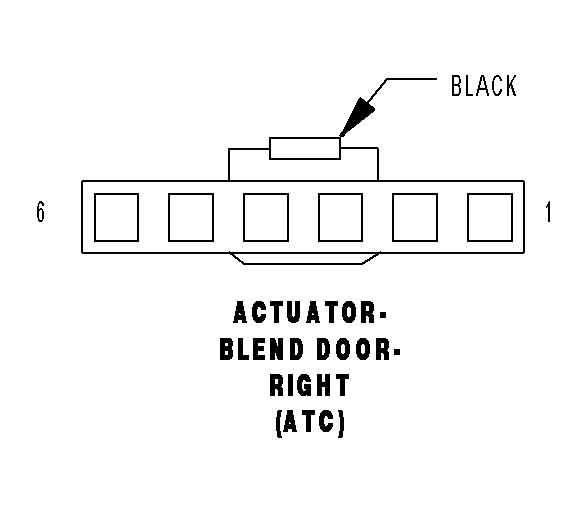

Right Blend Door Actuator (Automatic Temperature Control) Connector End View

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

ACTUATOR-BLEND DOOR-RIGHT (ATC) - BLACK 6 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	-	-
2	-	-
3	-	-
4	-	-
5	C61 20LB/GY	RIGHT BLEND DOOR DRIVER
6	C161 20LB/BR	RIGHT BLEND DOOR COMMON DRIVER
