Recirculation Door Actuator Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

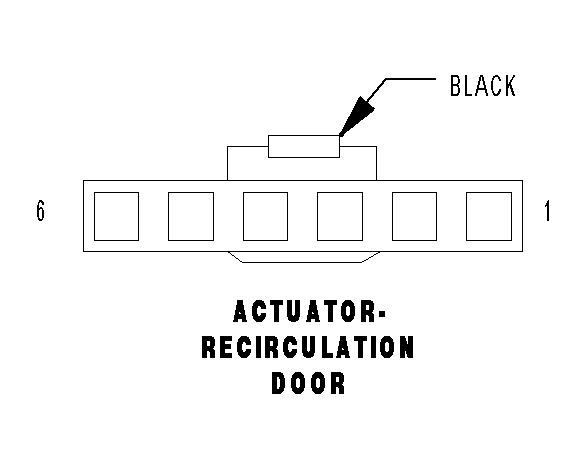

ACTUATOR-RECIRCULATION DOOR - BLACK 6 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
- |
- |
| 2 |
- |
- |
| 3 |
- |
- |
| 4 |
- |
- |
| 5 |
C268 20DB/OR |
RECIRCULATION DOOR DRIVER |
| 6 |
C68 20DG/WT |
RECIRCULATION DOOR COMMON DRIVER |
