Rear Window Wiper Motor Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

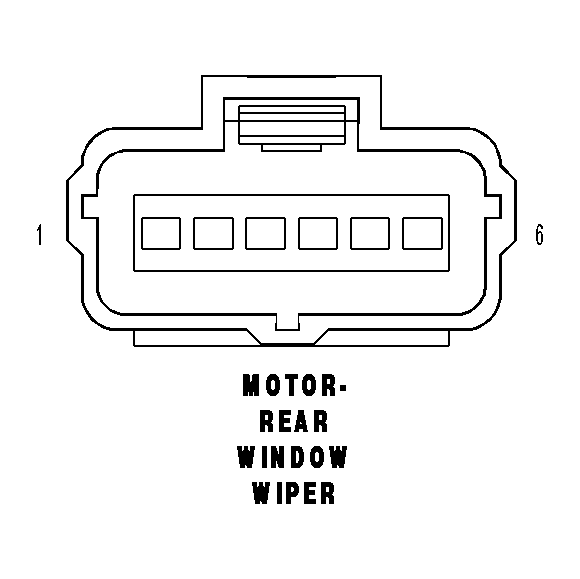

MOTOR-REAR WINDOW WIPER - 6 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Z800 16BK |
GROUND |
| 2 |
W13 20BR/LG |
REAR WIPER MOTOR CONTROL |
| 3 |
G80 20VT/BR |
FLIP-UP GLASS AJAR SWITCH SENSE |
| 4 |
W14 20BR/LB |
REAR WIPER MOTOR DELAY SIGNAL |
| 5 |
A46 18RD/GY |
REAR WIPER RELAY OUTPUT |
| 6 |
- |
- |
