Rear Park Display Module (Rear Park Assist) Connector End View

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

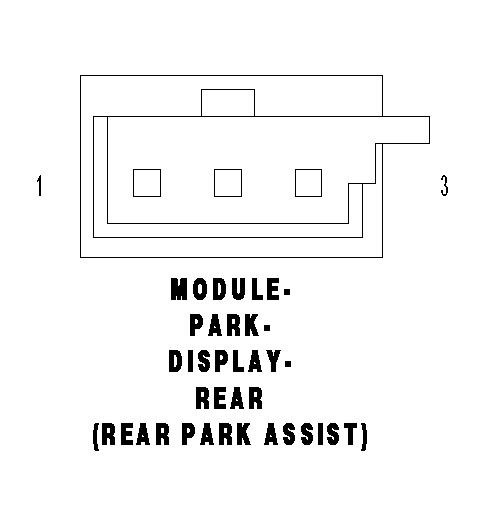

MODULE-PARK-DISPLAY-REAR (REAR PARK ASSIST) - 3 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	X777 20LG/GY	PARK ASSIST DISPLAY SUPPLY
2	Z171 20GY/BK	GROUND
3	D777 20WT/GY	REAR PARK ASSIST DISPLAY SIGNAL
