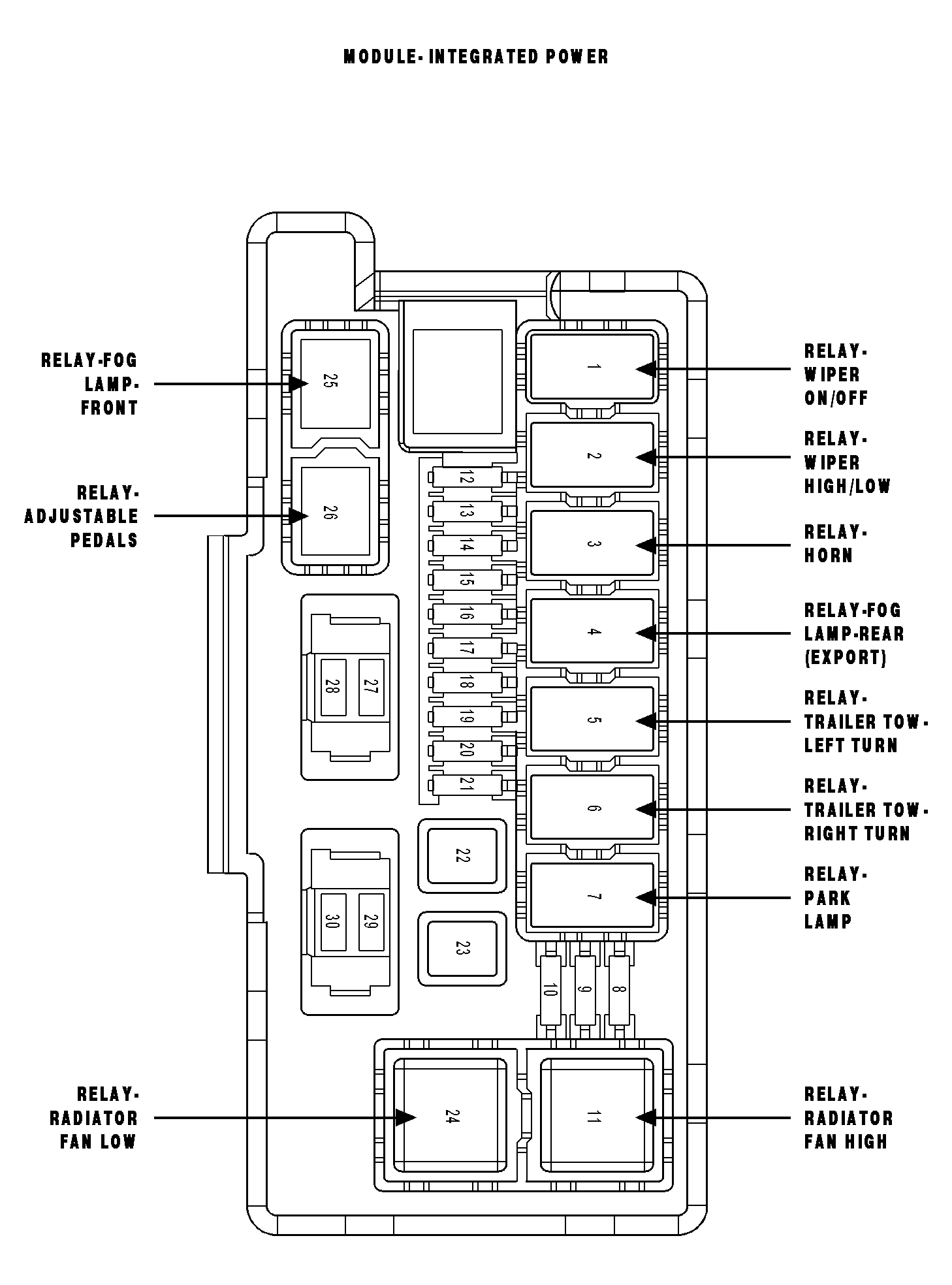

Rear Fog Lamp Relay (Export) Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
RELAY-FOG LAMP-REAR (EXPORT)
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 30 |
A35 18RD/DG |
FUSED B(+) |
| 85 |
L239 20WT/DG |
REAR FOG LAMP RELAY CONTROL |
| 86 |
A928 18RD |
FUSED B(+) |
| 87 |
A928 18RD |
FUSED B(+) |
| 87A |
- |
- |
