Rear Fascia Side Inline (Rear Park Assist) Connector End View (C314)
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

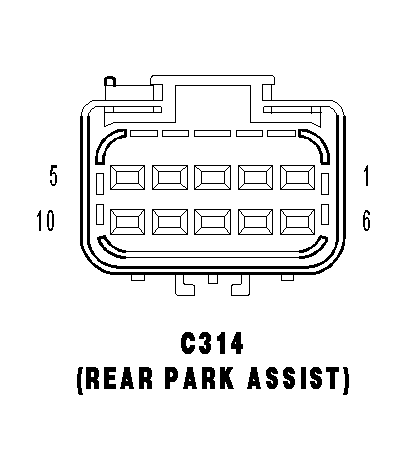

C314 (REAR PARK ASSIST) - (REAR FASCIA SIDE)
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
| 1 |
A35 18RD/DG (EXPORT) |
| 2 |
D703 20WT/OR |
| 3 |
X750 20GY/LB |
| 4 |
X700 20GY/OR |
| 5 |
- |
| 6 |
- |
| 7 |
D701 20WT/LB |
| 8 |
D704 20WT/DB |
| 9 |
D700 20WT/DG |
| 10 |
Z918 18BK (EXPORT) |
