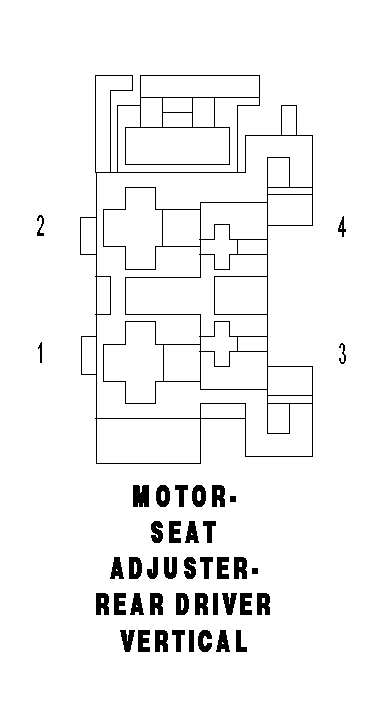

Rear Driver Seat Adjuster Vertical Motor Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
MOTOR-SEAT ADJUSTER-REAR DRIVER VERTICAL - 4 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | P13 16LG/OR (EXCEPT MEMORY SEATS) | DRIVER SEAT REAR RISER DOWN DRIVER |
| 1 | P113 16LG/WT (MEMORY SEATS) | DRIVER SEAT REAR VERTICAL DOWN DRIVER |
| 2 | P11 16LG/YL (EXCEPT MEMORY SEATS) | DRIVER SEAT REAR RISER UP DRIVER |
| 2 | P111 16LG/YL (MEMORY SEATS) | DRIVER SEAT REAR VERTICAL UP DRIVER |
| 3 | G492 20LB/VT (MEMORY SEATS) | DRIVER SEAT REAR VERTICAL SENSOR GROUND |
| 4 | G402 20VT/DB (MEMORY SEATS) | DRIVER SEAT REAR VERTICAL POSITION SENSE |
