Rain Sensor Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

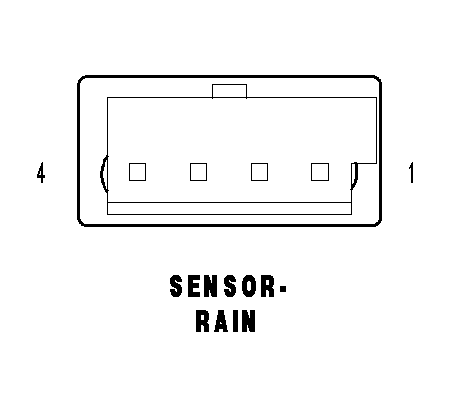

SENSOR-RAIN - 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
A934 20RD/OR |
FUSED RUN/ACCESSORY RELAY OUTPUT |
| 2 |
Z915 20BK |
GROUND |
| 3 |
D55 20WT/OR |
CAN B BUS (+) |
| 4 |
D54 20WT |
CAN B BUS (-) |
