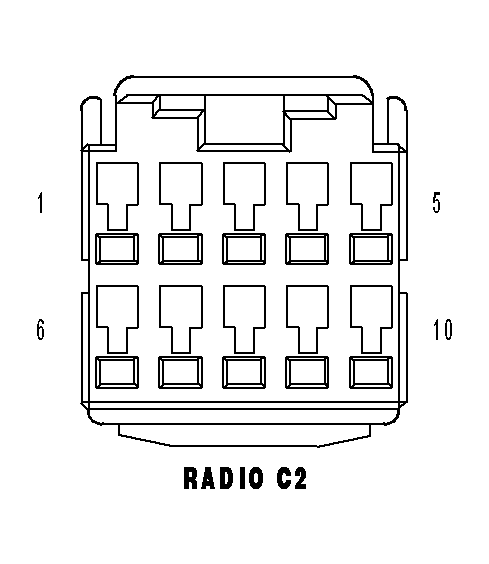

Radio Connector End View (C2)
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
RADIO C2 - 10 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | X16 20DG/YL (EXCEPT HANDS FREE) | AUDIO SIGNAL RIGHT (+) |
| 2 | X917 20DG (EXCEPT HANDS FREE) | AUDIO SIGNAL COMMON |
| 3 | - | - |
| 4 | X510 20DG/LB (DVD) | RIGHT AUDIO AUX |
| 5 | X926 20GY/OR (DVD) | AUDIO OUT GROUND |
| 6 | X17 20DG/OR (EXCEPT SATELLITE RADIO) | AUDIO SIGNAL LEFT (+) |
| 6 | X17 20DG/LB (SATELLITE RADIO) | AUDIO SIGNAL LEFT (+) |
| 7 | X910 20GY/DG (DVD) | AUX AUDIO RETURN/COMMON |
| 8 | X511 20GY/LG (DVD) | LEFT AUDIO AUX |
| 9 | X521 20GY/LB (DVD) | LEFT AUDIO AUX |
| 10 | X522 20GY/DB (DVD) | RIGHT AUDIO AUX |
