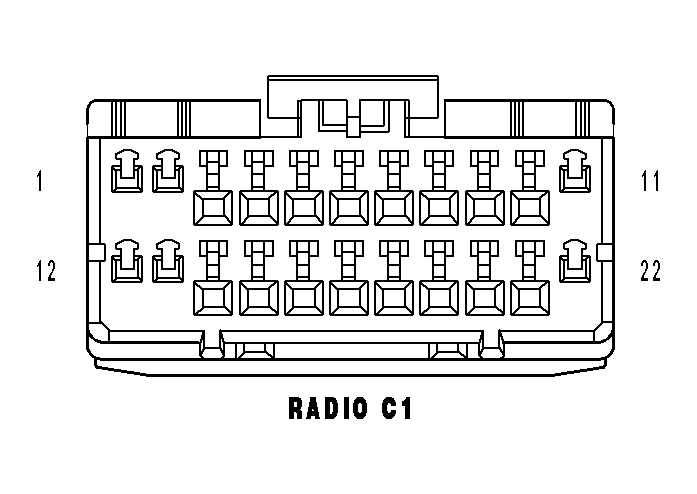

Radio Connector End View (C1)
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
RADIO C1 - 22 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | A118 16RD/OR | FUSED B(+) |
| 2 | - | - |
| 3 | - | - |
| 4 | X703 20DG/OR (HANDS FREE) | LEFT AUDIO OUTPUT |
| 5 | D55 20WT/OR | CAN B BUS (+) |
| 6 | D54 20WT | CAN B BUS (-) |
| 7 | X54 18GY (BASE AUDIO) | RIGHT FRONT SPEAKER (+) |
| 8 | X56 18GY/BR (BASE AUDIO) | LEFT FRONT SPEAKER (-) |
| 9 | X55 18DG/BR (BASE AUDIO) | LEFT FRONT SPEAKER (-) |
| 10 | X53 18DG (BASE AUDIO) | LEFT FRONT SPEAKER (+) |
| 11 | Z920 16BK | GROUND |
| 12 | A118 16RD/OR | FUSED B(+) |
| 13 | - | - |
| 14 | - | - |
| 15 | - | - |
| 16 | X704 20DG/YL (HANDS FREE) | RIGHT AUDIO OUTPUT |
| 17 | X795 20DG (HANDS FREE) | COMMON AUDIO OUTPUT |
| 18 | X51 18DG/DB | RADIO LEFT REAR AUDIO (+) |
| 19 | X57 18DG/VT | RADIO-LEFT REAR AUDIO (-) |
| 20 | X58 18GY/TN | RADIO RIGHT REAR AUDIO (-) |
| 21 | X52 18GY/DB | RIGHT REAR AUDIO (+) |
| 22 | Z920 16BK | GROUND |
