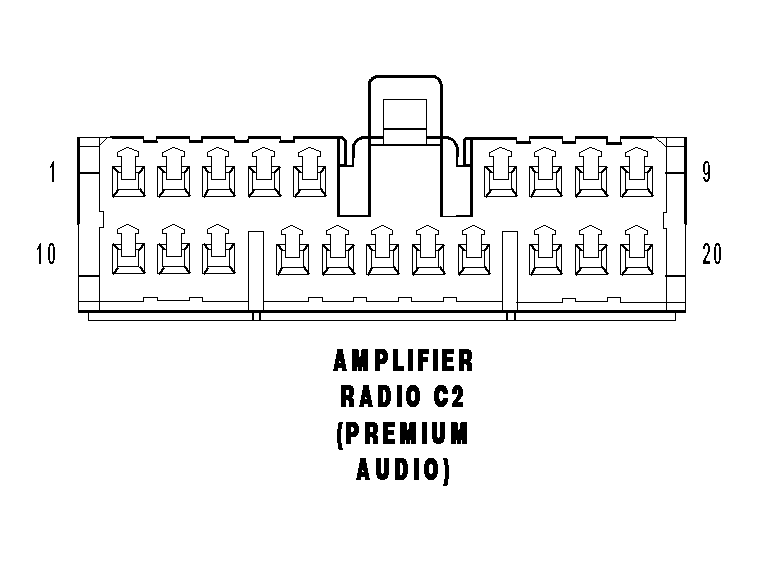

Radio Amplifier (Premium Audio) Connector End View (C2)
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
AMPLIFIER-RADIO C2 (PREMIUM AUDIO) - 20 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | X209 18GY/OR | AMPLIFIED LEFT I/P SPEAKER (+) |
| 2 | X208 18GY/DG | AMPLIFIED RIGHT I/P SPEAKER (+) |
| 3 | - | - |
| 4 | A116 16YL/RD | FUSED B(+) |
| 5 | - | - |
| 6 | D55 20WT/OR | CAN B BUS (+) |
| 7 | X51 18DG/DB | RADIO LEFT REAR AUDIO (+) |
| 8 | X52 18GY/DB | RIGHT REAR AUDIO (+) |
| 9 | Z514 16BK/LG | GROUND |
| 10 | X299 18GY/YL | AMPLIFIED LEFT I/P SPEAKER (-) |
| 11 | X298 18GY/LG | AMPLIFIED RIGHT I/P SPEAKER (-) |
| 12 | - | - |
| 13 | A116 16YL/RD | FUSED B(+) |
| 14 | - | - |
| 15 | - | - |
| 16 | - | - |
| 17 | D54 20WT | CAN B BUS (-) |
| 18 | X57 18DG/VT | LEFT REAR AUDIO (-) |
| 19 | X58 18GY/TN | RADIO RIGHT REAR AUDIO (-) |
| 20 | Z514 16BK/LG | GROUND |
