Radio Amplifier (Premium Audio) Connector End View (C1)
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

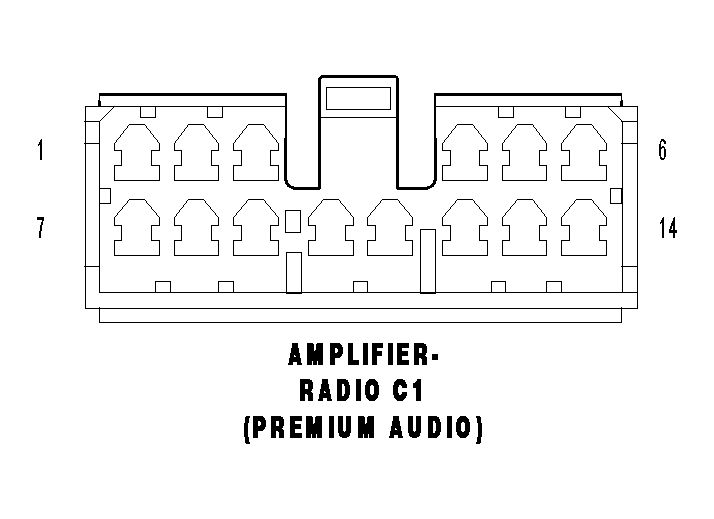

AMPLIFIER-RADIO C1 (PREMIUM AUDIO) - 14 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | X201 18GY/VT | AMPLIFIED LEFT FRONT DOOR SPEAKER (+) |
| 2 | X202 18DG/VT | AMPLIFIED RIGHT FRONT DOOR SPEAKER (+) |
| 3 | X205 18GY/LG | AMPLIFIED LEFT REAR DOOR SPEAKER (+) |
| 4 | X206 18DG/LG | AMPLIFIED RIGHT REAR DOOR SPEAKER (+) |
| 5 | - | - |
| 6 | - | - |
| 7 | X291 18GY/YL | AMPLIFIED LEFT FRONT DOOR SPEAKER (-) |
| 8 | X292 18DG/YL | AMPLIFIED RIGHT FRONT DOOR SPEAKER (-) |
| 9 | X295 18GY/DG | AMPLIFIED LEFT REAR DOOR SPEAKER (-) |
| 10 | - | - |
| 11 | - | - |
| 12 | X296 18LG/GY | AMPLIFIED RIGHT REAR DOOR SPEAKER (-) |
| 13 | - | - |
| 14 | - | - |
