Radiator Fan High Relay Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

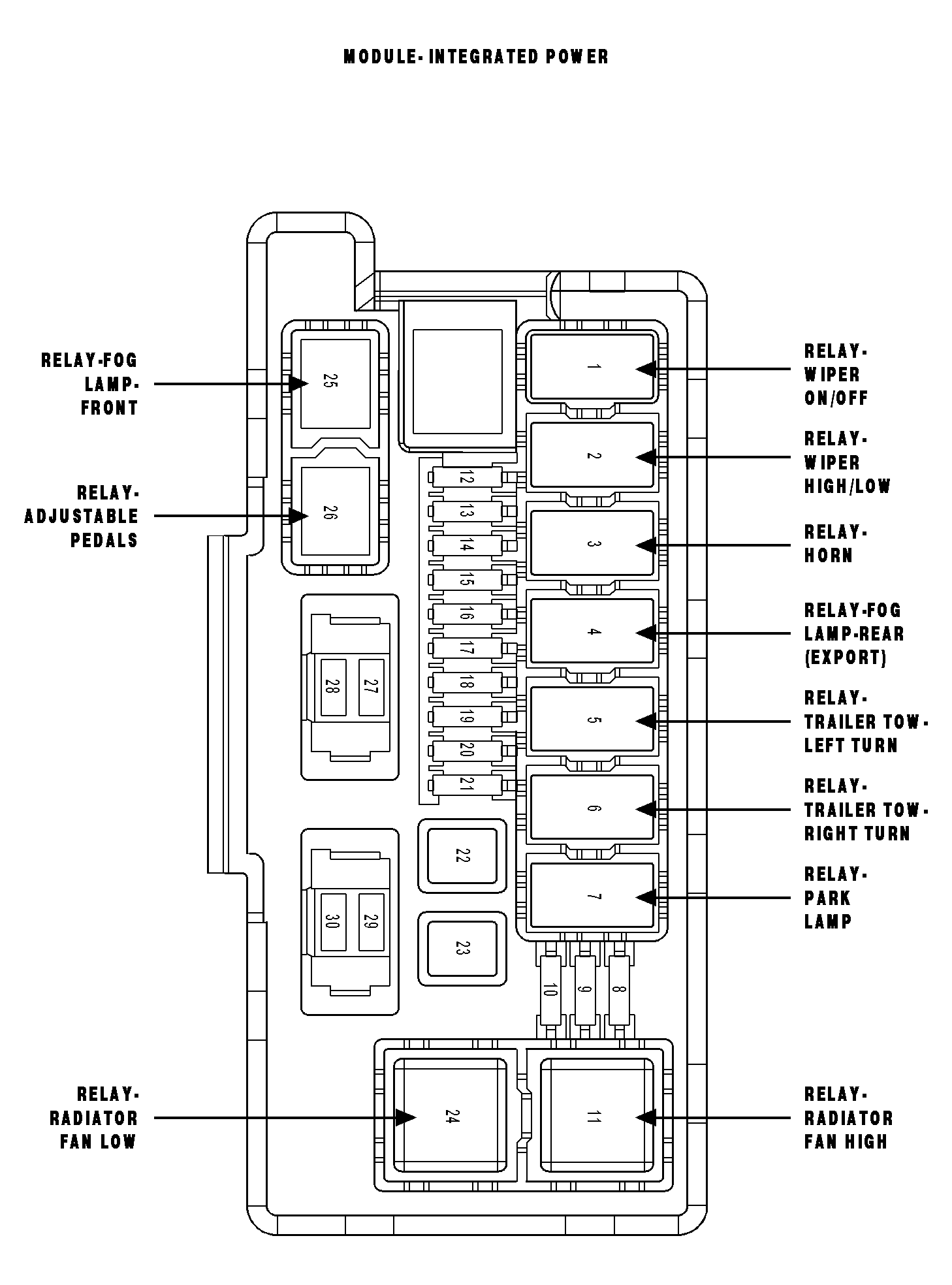

RELAY-RADIATOR FAN HIGH
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 30 |
A16 10RD/BR |
FUSED B(+) |
| 85 |
N112 20DB/OR |
RADIATOR FAN HIGH RELAY CONTROL |
| 86 |
A16 10RD/BR |
FUSED B(+) |
| 87 |
N23 10DB/DG |
HIGH SPEED RADIATOR FAN RELAY OUTPUT |
| 87A |
- |
- |
