Power Outlet Relay Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

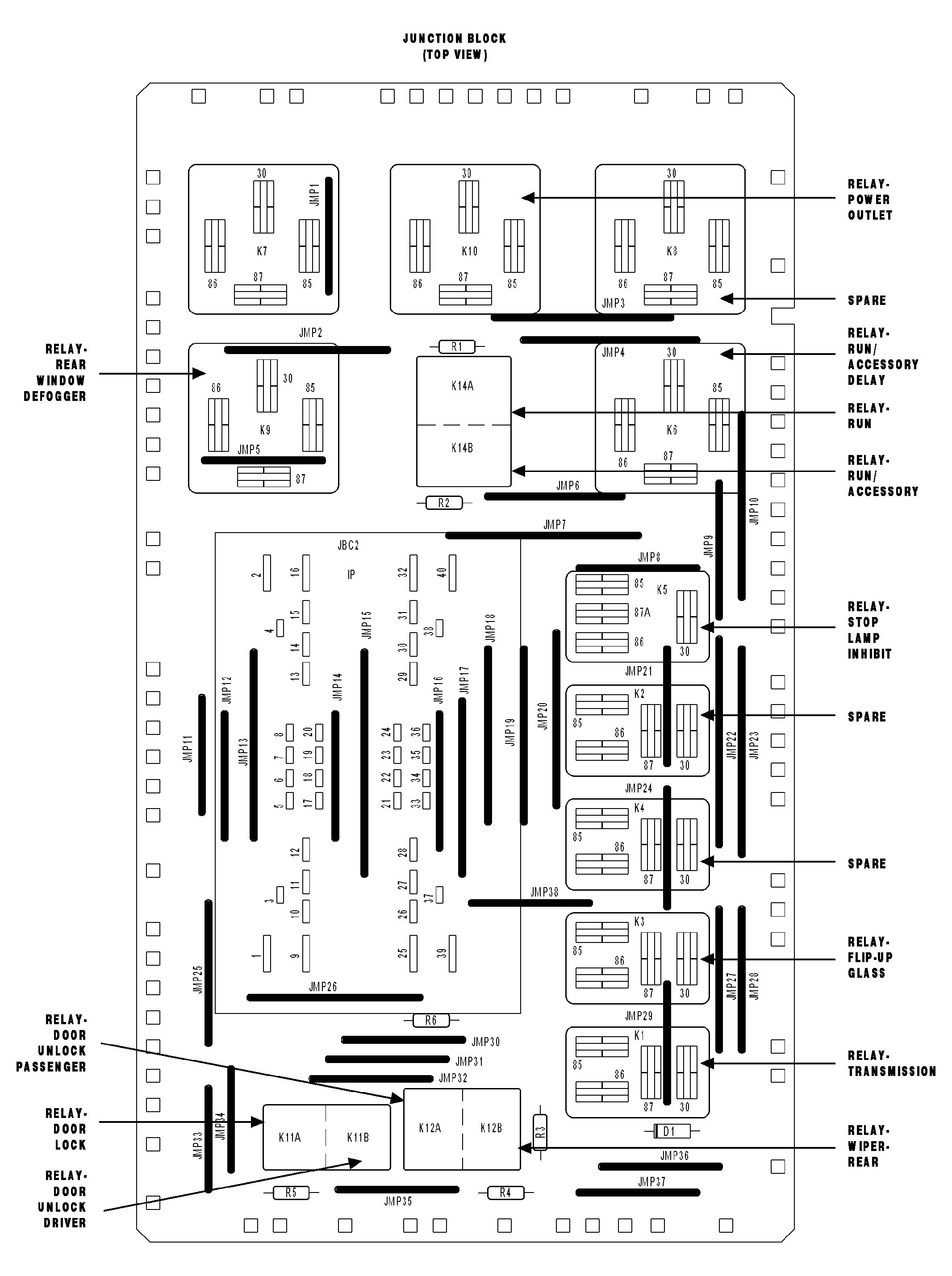

RELAY-POWER OUTLET
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 30 |
A925 14RD |
FUSED B(+) |
| 85 |
Z387 16BK |
GROUND |
| 86 |
F981 14PK/YL |
ACCESSORY DELAY RELAY OUTPUT |
| 87 |
A930 14RD |
POWER OUTLET RELAY OUTPUT |
| 87A |
- |
- |
