Power Distribution Center B-Positive Connector End View

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

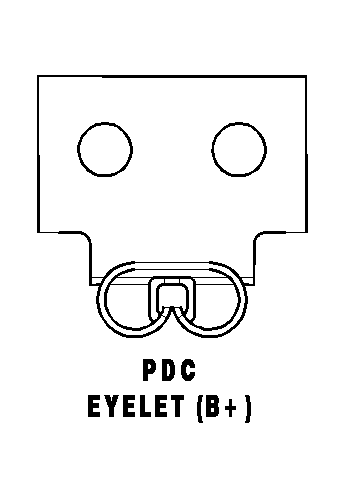

PDC EYELET (B+) - 1 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT
1	A0 06RD (DIESEL)
1	A904 10RD (DIESEL)
1	A0 08RD (GAS)
