Power Console Outlet Connector End View

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

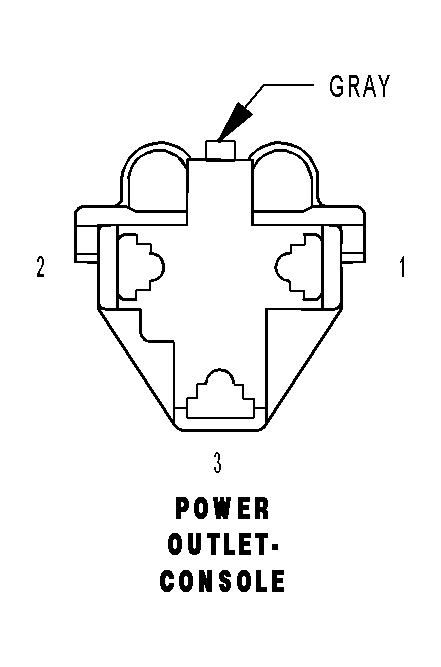

POWER OUTLET-CONSOLE - GRAY 3 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	A405 14RD/DB	FUSED B(+)
2	-	-
3	Z905 16BK	GROUND
