Positive Temperature Coefficient Relay 3 (Diesel) Connector End View

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

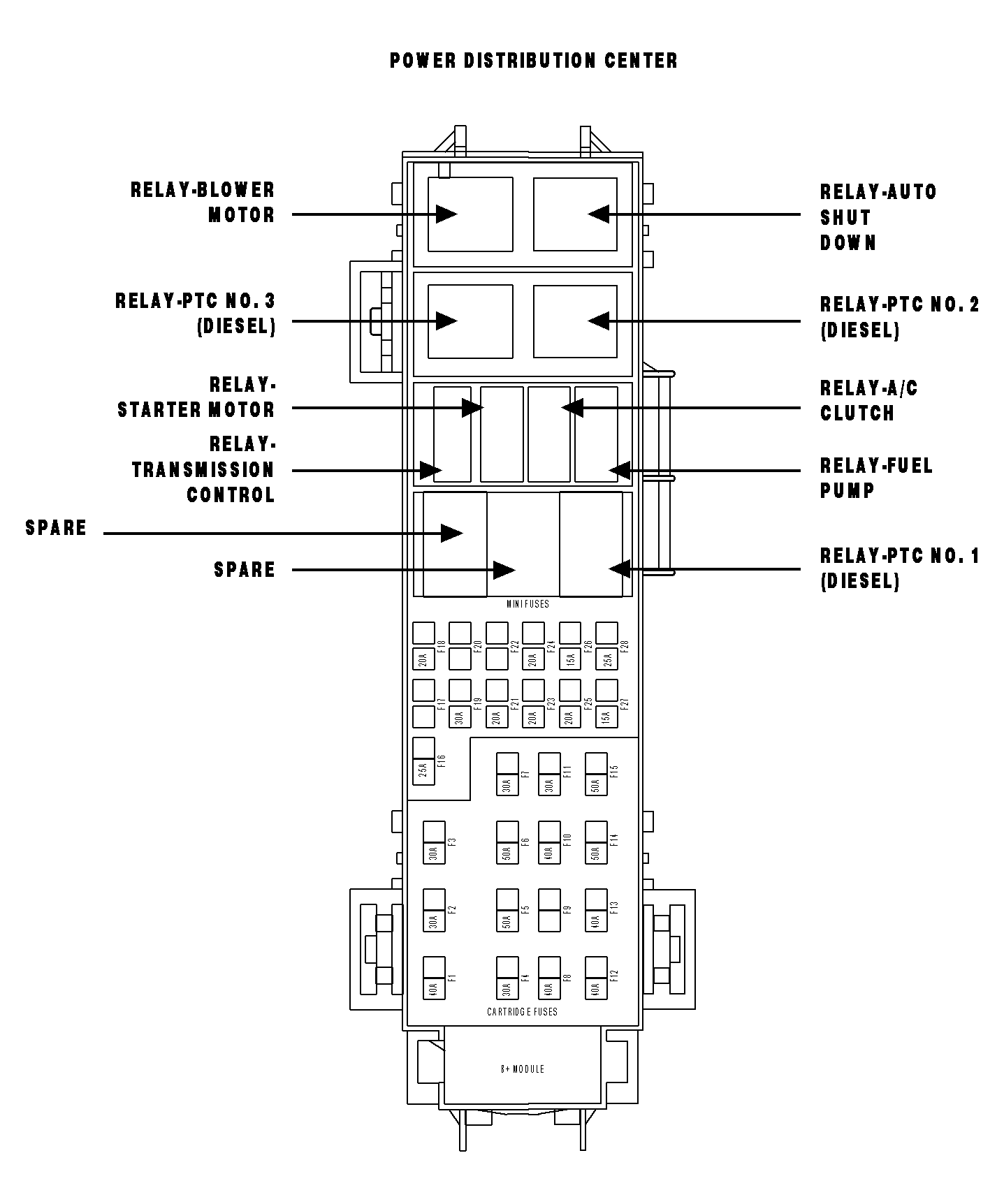

RELAY-PTC NO. 3 (DIESEL)

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
30	A918 10RD	FUSED B(+)
85	K363 20OR/BR	PTC NO. 3 RELAY CONTROL
86	A15 16RD/TN	FUSED ASD RELAY OUTPUT
87	N115 10DB/YL	PTC NO. 3 RELAY OUTPUT
87A	-	-
