Positive Temperature Coefficient Relay 2 (Diesel) Connector End View

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

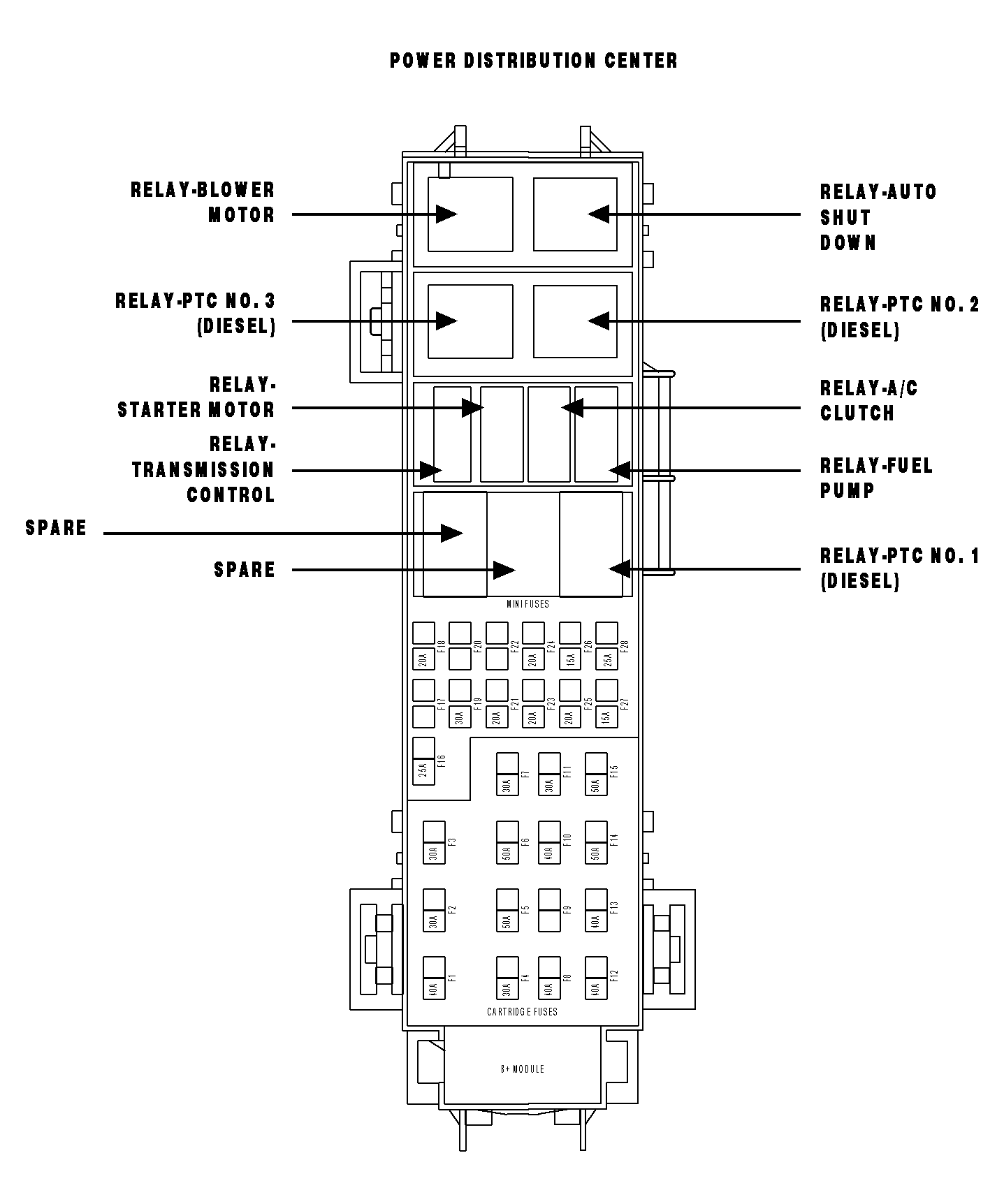

RELAY-PTC NO. 2 (DIESEL)

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
30	A915 10RD	FUSED B(+)
85	K361 20BR/WT	PTC NO. 2 RELAY CONTROL
86	A15 16RD/TN	FUSED ASD RELAY OUTPUT
87	N114 10DB/LB	PTC NO. 2 RELAY OUTPUT
87A	-	-
