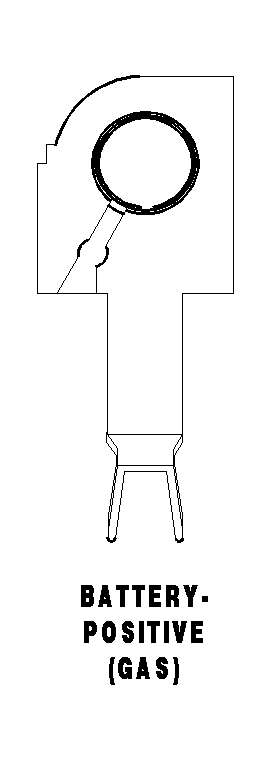

Positive Battery (Gas) Connector End View

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

BATTERY-POSITIVE (GAS) - 1 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	A1 06RD	B(+)
1	A8 06RD	B(+)
