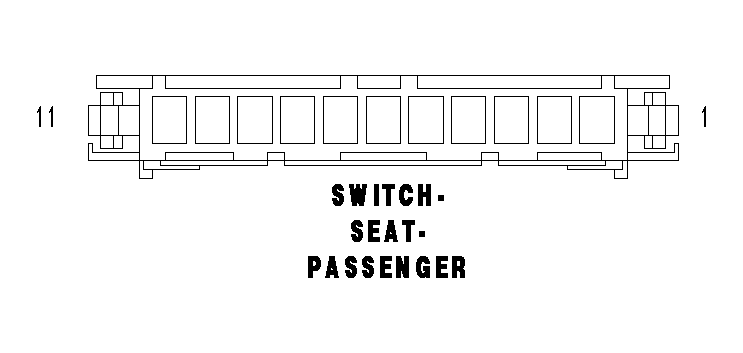

Passenger Seat Switch Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
SWITCH-SEAT-PASSENGER - 11 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | P42 16LG/GY | PASSENGER SEAT RECLINER SWITCH DOWN |
| 2 | - | - |
| 3 | P44 16LG/VT | PASSENGER SEAT RECLINER SWITCH UP |
| 4 | P16 16LG/WT | PASSENGER SEAT HORIZONTAL REARWARD DRIVER |
| 5 | - | - |
| 6 | A33 16BK/RD | FUSED B(+) |
| 7 | Z909 14BK (EXCEPT HEATED SEATS) | GROUND |
| 7 | Z909 16BK (HEATED SEATS) | GROUND |
| 8 | P14 16LG/OR | PASSENGER SEAT HORIZONTAL FORWARD DRIVER |
| 9 | - | - |
| 10 | - | - |
| 11 | - | - |
