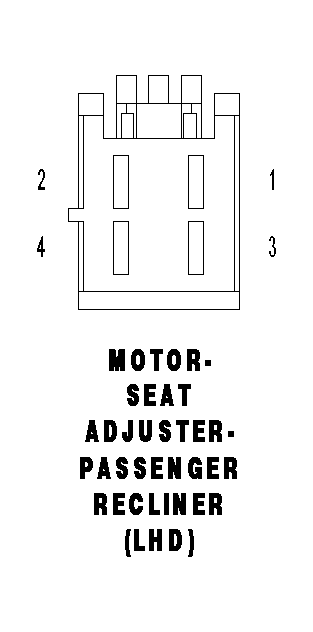

Passenger Seat Adjuster Recliner Motor (LHD) Connector End View

WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

MOTOR-SEAT ADJUSTER-PASSENGER RECLINER (LHD) - 4 WAY

Courtesy of DAIMLERCHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	P44 16LG/VT	PASSENGER SEAT RECLINER SWITCH UP
2	P42 16LG/GY	PASSENGER SEAT RECLINER SWITCH DOWN
3	-	-
4	-	-
