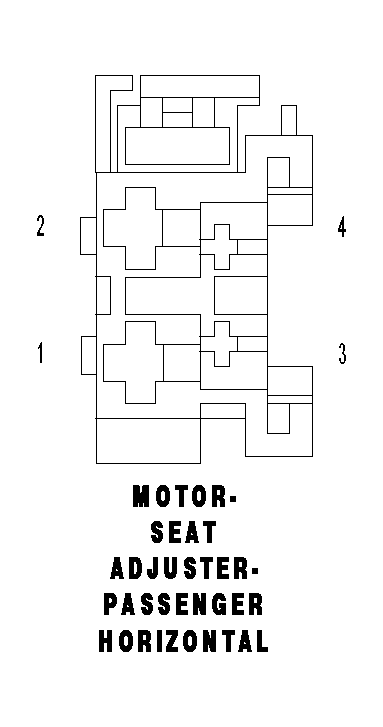

Passenger Seat Adjuster Horizontal Motor Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
MOTOR-SEAT ADJUSTER-PASSENGER HORIZONTAL - 4 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | P16 16LG/WT (LHD) | PASSENGER SEAT HORIZONTAL REARWARD DRIVER |
| 1 | P14 16LG/OR (RHD) | PASSENGER SEAT HORIZONTAL FORWARD DRIVER |
| 2 | P14 16LG/OR (LHD) | PASSENGER SEAT HORIZONTAL FORWARD DRIVER |
| 2 | P16 16LG/WT (RHD) | PASSENGER SEAT HORIZONTAL REARWARD DRIVER |
| 3 | - | - |
| 4 | - | - |
