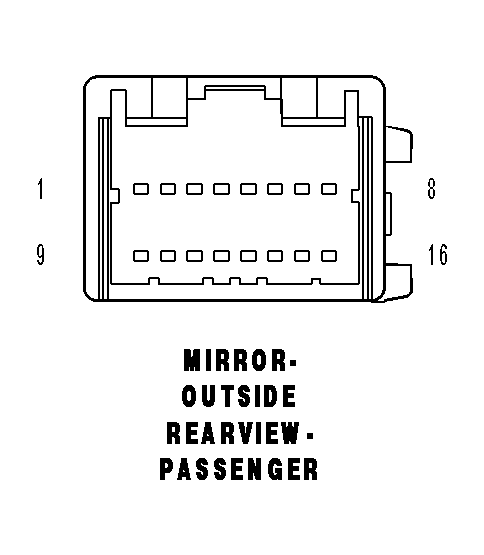

Passenger Outside Rearview Mirror Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
MIRROR-OUTSIDE REARVIEW-PASSENGER - 16 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | P72 20TN/GY | PASSENGER MIRROR VERTICAL DRIVER |
| 2 | P74 20TN/OR | PASSENGER MIRROR HORIZONTAL DRIVER |
| 3 | P70 20TN/LB | PASSENGER MIRROR COMMON DRIVER |
| 4 | P110 20LB/WT | FOLDING MIRROR RETURN |
| 5 | P699 20LG/YL (FOLDING MIRRORS) | MIRROR-POWER FOLDING/UNFOLDING |
| 6 | C17 20LB/DG (EXCEPT MEMORY MIRRORS) | FUSED REAR WINDOW DEFOGGER RELAY OUTPUT |
| 6 | C16 20DB/GY (MEMORY MIRRORS) | PASSENGER MIRROR HEATER DRIVER |
| 7 | Z908 20 BK (EXCEPT MEMORY MIRRORS) | GROUND |
| 7 | C917 20DB/YL (MEMORY MIRRORS) | PASSENGER MIRROR HEATER GROUND |
| 8 | P68 20TN/YL (MEMORY MIRRORS) | PASSENGER MIRROR HORIZONTAL POSITION SIGNAL |
| 9 | P64 20TN (MEMORY MIRRORS) | PASSENGER MIRROR VERTICAL POSITION SIGNAL |
| 10 | P666 20LG/OR (MEMORY MIRRORS) | PASSENGER MIRROR SENSOR SUPPLY |
| 11 | P66 20TN/LG (MEMORY MIRRORS) | PASSENGER MIRROR SENSOR GROUND |
| 12 | - | - |
| 13 | - | - |
| 14 | - | - |
| 15 | - | - |
| 16 | - | - |
