Passenger Airbag Squib Connector End View
WARNING: This page is about a different car, the 2005 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

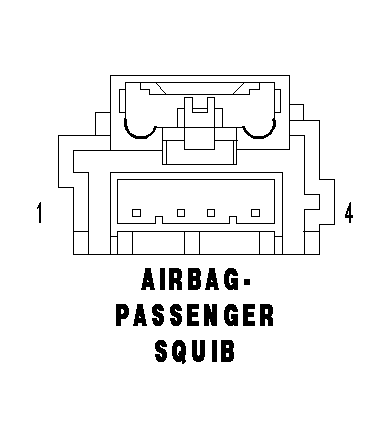

AIRBAG-PASSENGER SQUIB - 4 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
R44 20LB/OR |
PASSENGER SQUIB 1 LINE 1 |
| 2 |
R42 20LB/BR |
PASSENGER SQUIB 1 LINE 2 |
| 3 |
R62 20LB/VT |
PASSENGER SQUIB 2 LINE 2 |
| 4 |
R64 20LB/WT |
PASSENGER SQUIB 2 LINE 1 |
